CONQUER DARKNESS

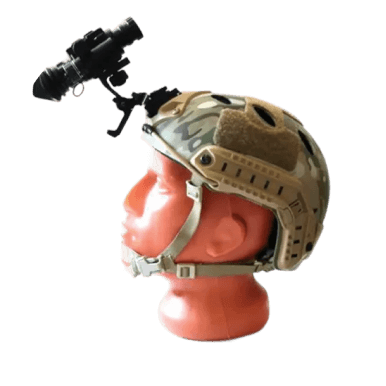

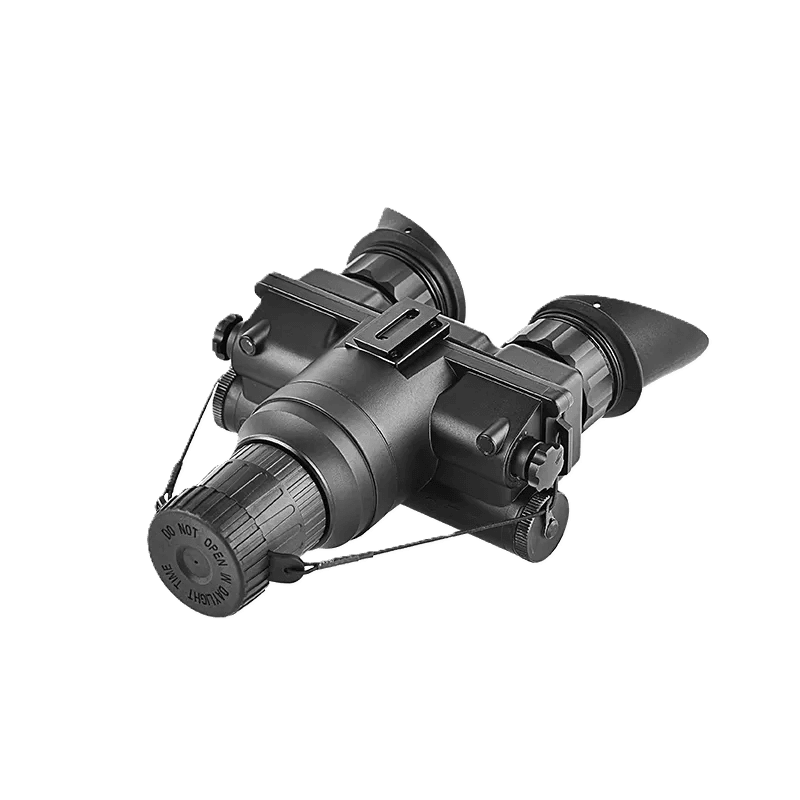

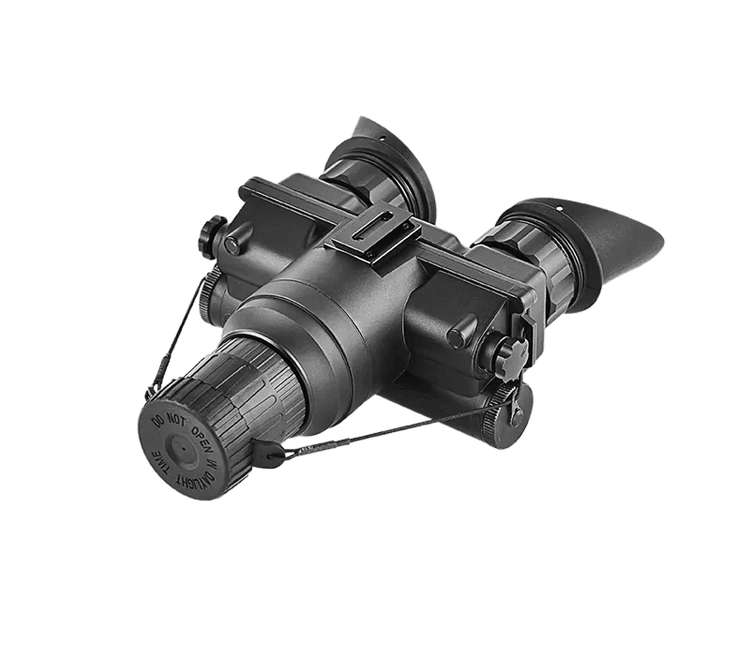

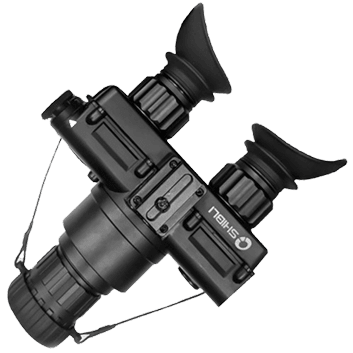

Unleash the unparalleled power of the Ermine: a bi-ocular night vision goggle system equipped with cutting-edge image intensifier tubes. This hands-free device seamlessly integrates high-grade optics, reliable electronics, and superior performance, ensuring bright and crystal-clear night vision images even in the most adverse environments. The built-in IR light source guarantees seamless map reading and precise short-range illumination in total darkness. With its waterproof, rugged, lightweight, and compact design, the Ermine stands as the ultimate companion for a diverse range of demanding operations. Experience unmatched clarity, reliability, and versatility in every mission.
EXPLORE ERMINE NV
beyond the human eye.
BUILT-IN INFRA RED (IR) ILLUMINATOR
The built-in IR light source guarantees seamless map reading and precise short-range illumination in total darkness. They provide convenient use both when using monoculars together, and when used separately.
IMPERVIOUS TO WATER
SPECIFICATIONS
ERMINE NV
MAIN FEATURES
Protection Level
Continuous Operation Time
Screen Color
Power Supply
2 × AA battery| Products | ERMINE-NV | |
|---|---|---|
| Night Vision Channel | Image Intensifier | Gen 3 |
| Resolution | 60 – 68 lp/mm | |
| Signal-to-Noise Ratio | 19 – 25 | |
| Screen Color | Green / Black-White | |
| Objective Lens & General Parameters | Optical Magnification | 1x / 3x |
| Focal Distance (Objective Lens) | 18 mm / 50 mm | |
| Range of Focusing | 0.25 m – ∞ / 6 m – ∞ | |
| Field of View (F.O.V.) | 40° / 12° | |
| Overall Dimensions | 165 × 125 × 60 mm / 230 × 125 × 60 mm | |
| Weight | 0.4 kg / 0.55 kg | |
| System Parameters | Image Intensifier Warranty Resource | 10,000 hours |
| Power Supply | 2 × AA battery | |
| Continuous Operation Time | ≥ 60 hours | |
| Performance Parameters | Detection Distance (human – 1.7×0.5m) | 300 m / 450 m |
| Recognition Distance (human – 1.7×0.5m) | 200 m / 350 m | |
| General Parameters | Operating Temperature Range | -30 °C … +50 °C |
| Protection Level | IP67 | |
| Diopter Adjustment Range | -5 … +5 dptr. | |
| Interpupillary Adjustment Range | 65 ± 5 mm | |
| Light Overload Sensor | + | |
| Automatic Light Overload Switch-Off | + | |
| Low-Battery Indication (Battery Discharge) | + | |
| Automatic Brightness Control | + |
