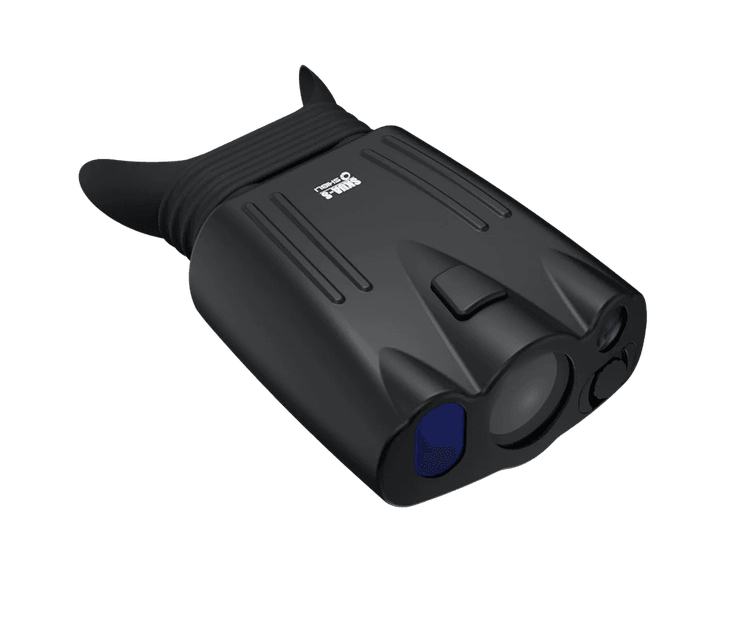

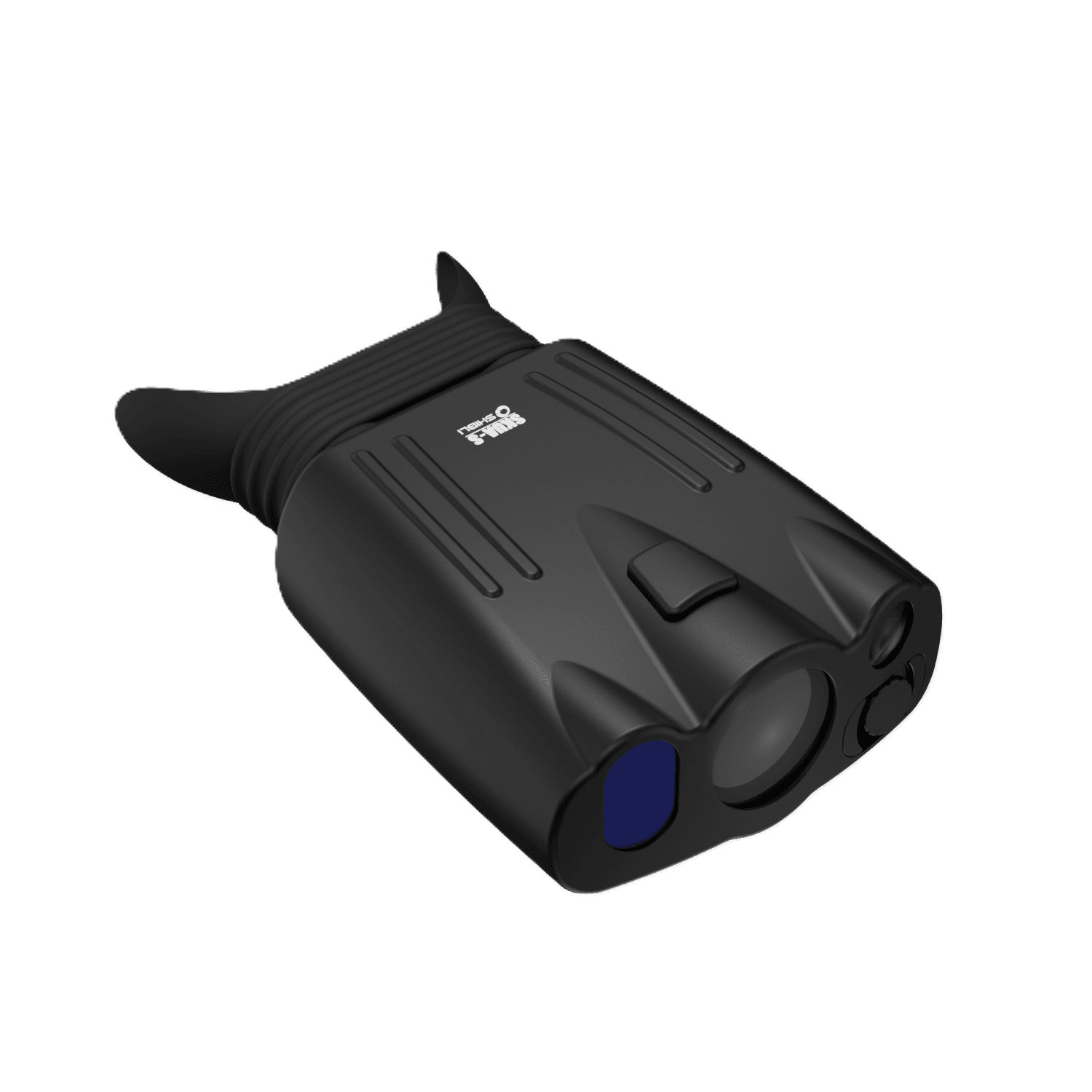

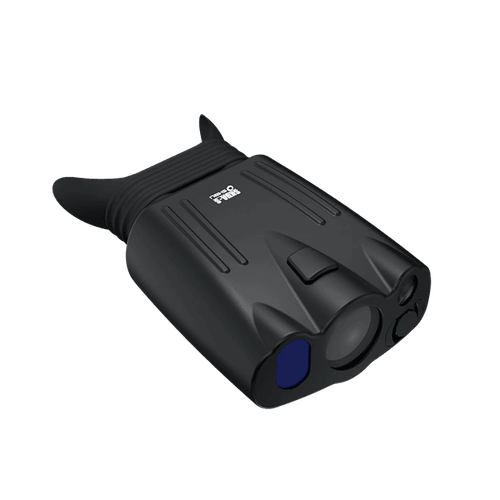

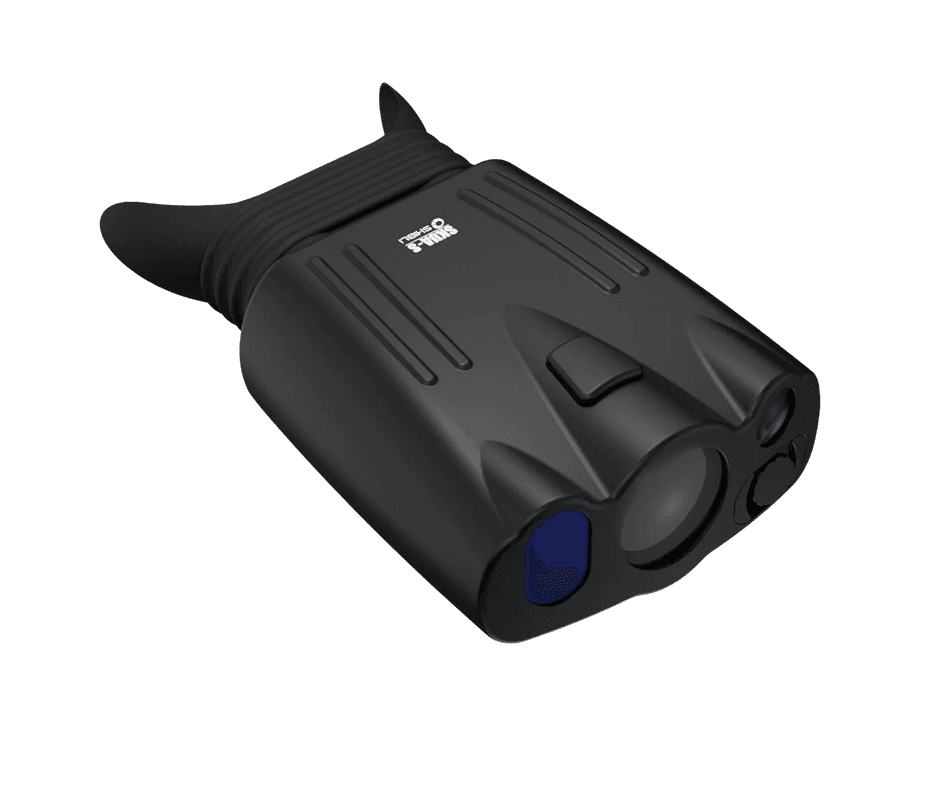

COOLED MULTIFUNCTIONAL THERMAL BINO
Designed for the toughest operations in all weather and lighting conditions, Falcon is a state-of-the-art cooled thermal binocular engineered for professionals who demand precision and reliability. Featuring a 640×480 cooled HOT (High Operating Temperature) sensor with 15µm pixel pitch, Falcon delivers exceptional image clarity and long-range detection. Its integrated day camera ensures true multimission capability, while the powerful optics enable target detection and recognition at ranges of 9 km and beyond.

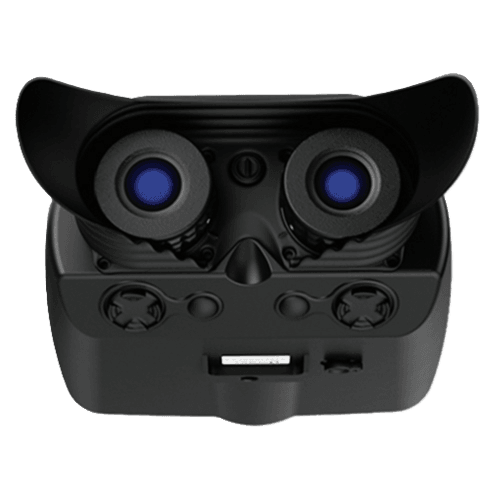

EXPLORE FALCON COOLED
DUAL-CHANNEL DOMINANCE
Engineered for 24/7 operations, Falcon’s multi-sensor fusion technology delivers superior situational awareness in both day and night missions, giving forces a decisive tactical advantage in any condition.
APPLICATIONS
Reconnaissance
Surveillance
Forward Observer
Force Protection
Border Patrol
Port Security
Maritime Surveillance
Facility Protection
Visible Light-Color
Visible Light-Black & White

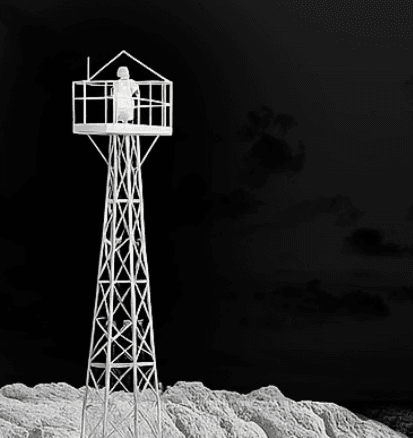

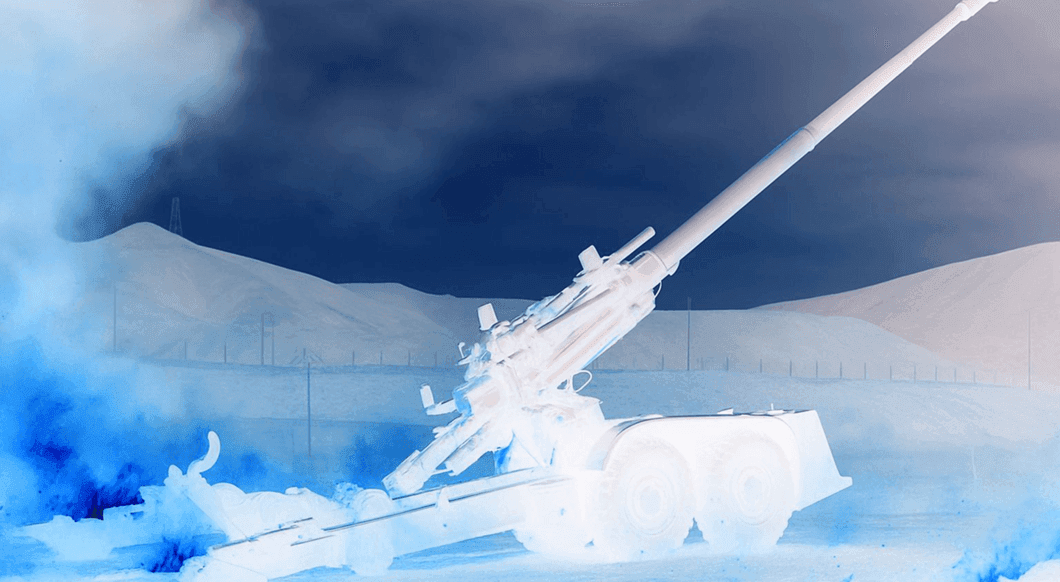

Thermal Image
beyond the human eye.
SPECIAL FEATURES

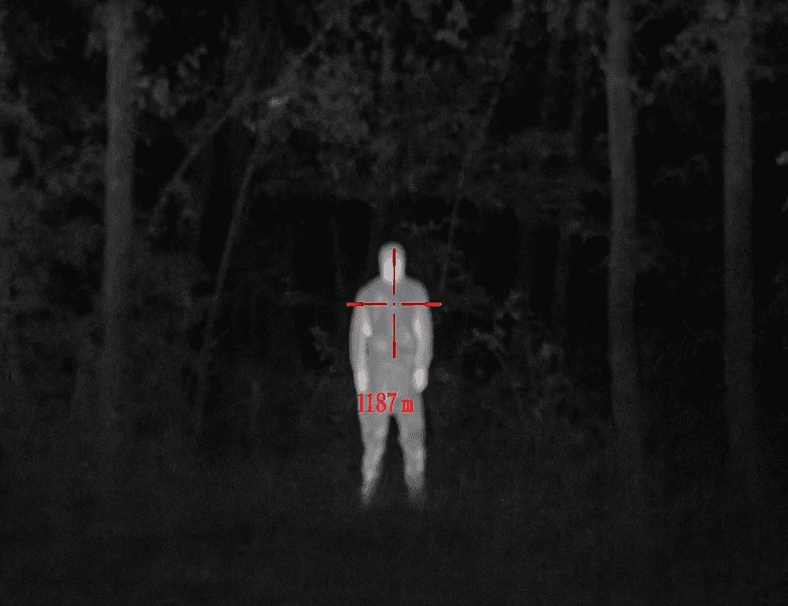

Falcon Built-in Laser Range Finder
Falcon’s eye-safe Laser Range Finder delivers instant, precise distance measurement from 1 km to 10 km, ensuring accurate detection of targets in all weather conditions

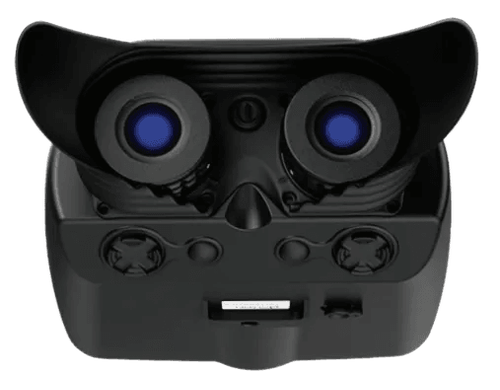

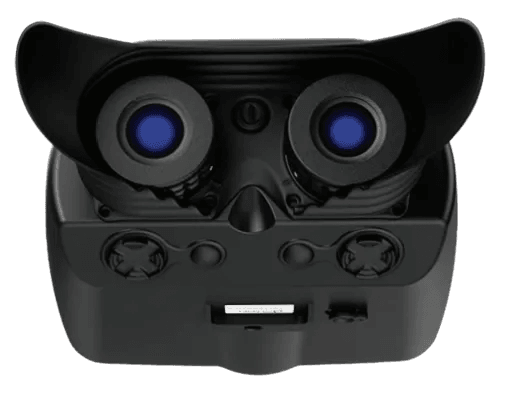

Ergonomic. Rugged. Mission-Ready.
Falcon’s ergonomic, military-grade design ensures comfort, control, and durability in the toughest missions. Lightweight yet rugged, it reduces fatigue while delivering unmatched reliability and performance.

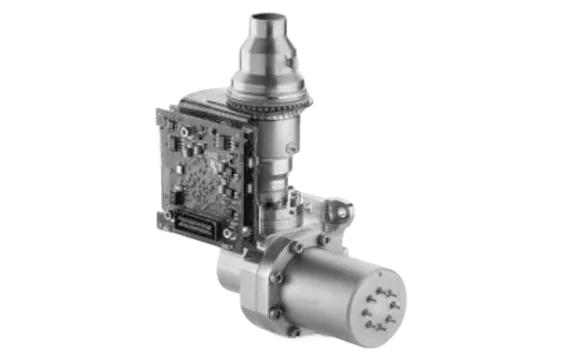

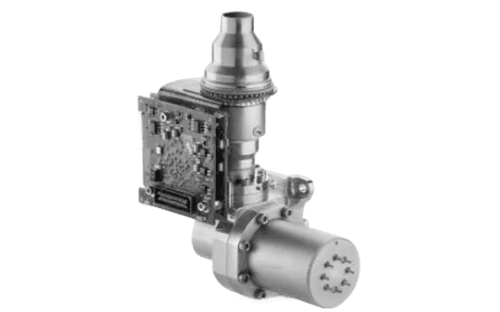

Next-Gen Thermal Core 640×480 Resolution
15μm 640×480 Thermal Core with Cooled HOT Sensor Technology delivering unmatched sensitivity, extended detection range, and crystal-clear thermal imaging
DRI RANGE PERFORMANCE WITH ACTUAL TARGETS
POWER. CONTROL. CLARITY.
- Cooled HOT sensor with up to 1280×1024 resolution
- Detection range: 5km (human), 9km (vehicle)
- Integrated 8km/10km laser rangefinder with GPS/GLONASS
- Built-in OLED display with video recording (32GB storage)
- MIL-STD-810G certified, waterproof, -35°C to +55°C operation
- 3×18650 rechargeable batteries, ~5 hours runtime
PUSH THE LIMITS OF VISION WITH FALCON'S UNRIVALED DETECTION POWER.
SPECIFICATIONS
FALCON
MAIN FEATURES
Detector Resolution (Pixels)
Objective Lens
Magnification
Field of view (HxV)
Detection range (Vehicle)| Products | FALCON | |
|---|---|---|
| Sensor | Type | Cooled HOT Sensor |
| Detector Resolution (Pixels) | 640 × 480 / 1280 × 1024 (Optional) | |
| Pixel Pitch | 15µm | |
| NETD | ≤ 25mK | |
| Spectral Range | 3–5µm | |
| Frame Rate | 50Hz | |
| Startup Time | ≤ 3 min | |
| Optics | Objective Lens | 100mm |
| Motorized Focus | Yes | |
| Optical Magnification | 4.5x | |
| Digital Magnification | 1x, 2x, 4x | |
| Field of View (H × V) | 5.5° × 4.1° | |
| Diopter Adjustment Range | +2 to −6 | |
| Display | Type | OLED |
| Resolution | 1280 × 1024 | |
| Performance | Detection Range (Human) | 5000 |
| Recognition Range (Human) | 2500 | |
| Identification Range (Human) | 1200 | |
| Detection Range (Vehicle) | 9000 | |
| Recognition Range (Vehicle) | 4500 | |
| Identification Range (Vehicle) | 2000 | |
| Recording & Storage | Photo Capture | Yes |
| Video Recording (In-built) | Yes | |
| Image Storage | In-built / External Support | |
| Internal Storage | 32GB | |
| Environmental Characteristics | Operating Temperature | -35°C to +55°C |
| Storage Temperature | -40°C to +60°C | |
| Shock & Vibration | MIL-STD-810G | |
| Water Immersion | 1m for 30 min (ΔT = 27°C) | |
| Compatibility & Power | Mounting Type | Universal 1/4″ Tripod Interface |
| Power Supply | Power Supply | Battery / External Power |
| Battery | 3×18650 Rechargeable | |
| Battery Time | Approx. 5 hours | |
| External Power Input | Yes | |
| Features | Laser Range Finder (LRF) | 8km / 10km |
| GPS / GLONASS | Yes | |
| DMC | Yes | |
| Target Location | Yes | |
| Dual-Channel Operation | Yes |

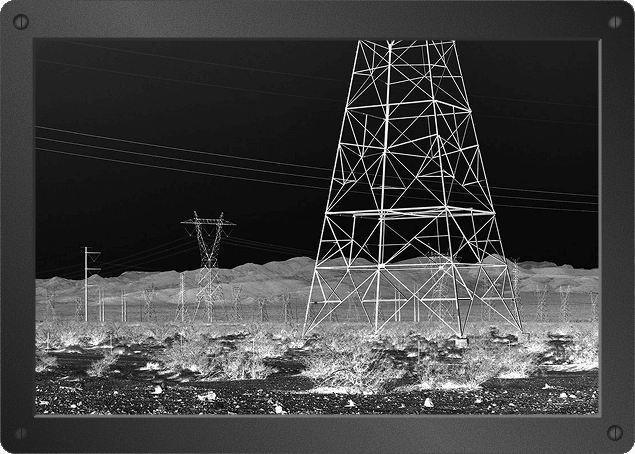

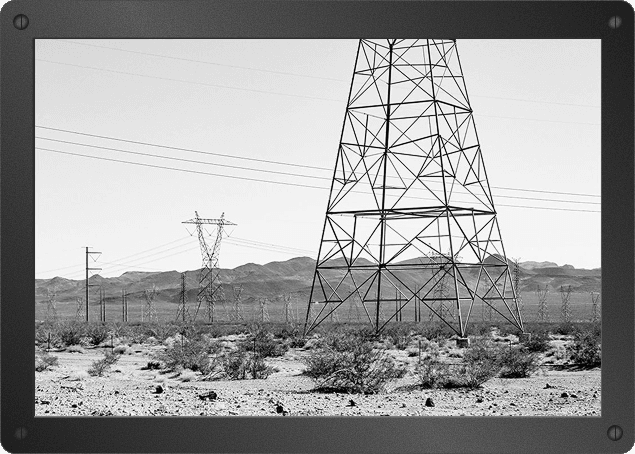

POLARITY & COLOR PALETTES
The FALCON is equipped with both white hot and black hot image display options presenting image detail options for convenience of users so that visibility is maximized in all conditions.
Black Hot
ACCESSORIES
Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
