UNCOOLED BORDER SURVEILLANCE SYSTEM
Guardian features a rugged, all-weather design with network-ready architecture, providing automated threat detection and long-range capabilities that boost safety, cut response time, and serve as a force multiplier for border, coast guard, and critical infrastructure protection teams.
EXPLORE GUARDIAN COOLED
COASTAL SURVEILLANCE
Guardian delivers real-time, 24/7 coastal monitoring with advanced thermal imaging, radar integration, and intelligent tracking. Engineered for rugged marine environments, it ensures early detection of vessels, intrusions, and potential threats day or night, in all weather conditions. From protecting maritime borders to securing critical coastal infrastructure, Guardian stands as your first line of defense at sea.
Normal View
Thermal View

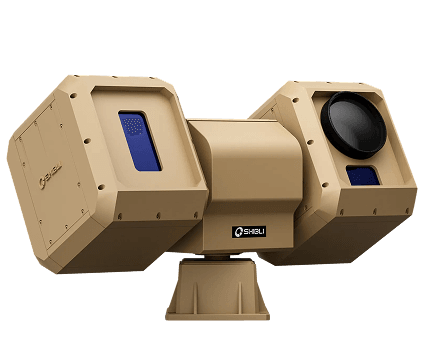

GUARDIAN
DETECT.
PROTECT.
SPECIAL FEATURES

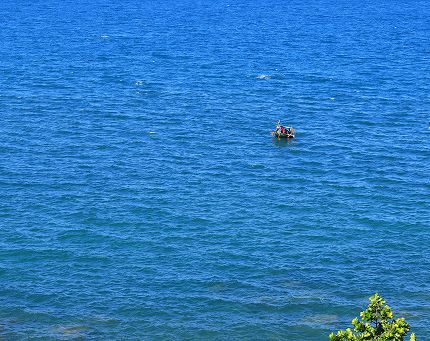

Day Channel
Vivid, high-resolution color imaging for crystal-clear target recognition in daylight and well-lit conditions.

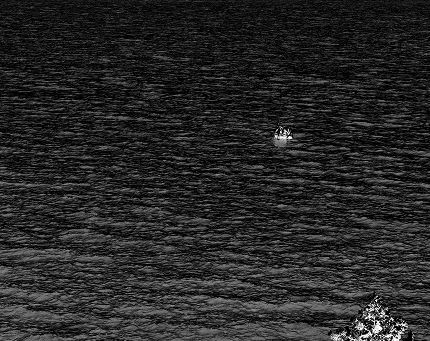

Thermal Channel
Detect heat signatures of people, vehicles, or vessels through total darkness, fog, smoke, and light camouflage.

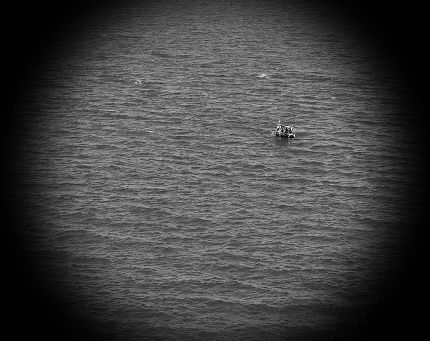

IR Illuminator
Stealth night vision that lights up the scene for your camera, but stays invisible to the human eye.

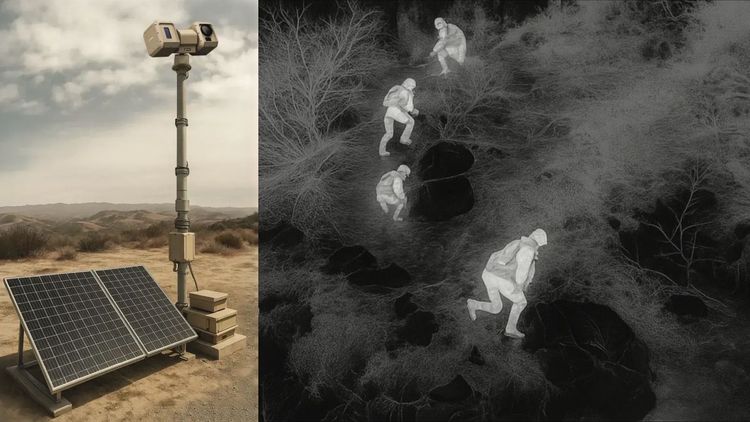

GUARDIAN MOBILE SURVEILLANCE & PROTECTION
C2 COMMAND & CONTROL WITHOUT BOUNDARIES
Behind the scenes, Guardian delivers intelligent workload management with device prioritization, advanced security, smart alarms, video archiving, and powerful automation. Whether on your C2 or ours Guardian keeps you connected, protected, and in control, in any light, any time.
FEATURES
Sensor Control & Switching
Real-Time Video Feed
Target Detection & Tracking
Map Integration (GIS)
Map Integration (GIS)
PTZ Control
AI-Based Analytics
Multi-Cam & Network Support
Comms & Networking
GUARDIAN
SECURITY.
STRENGTH.
SPECIFICATIONS

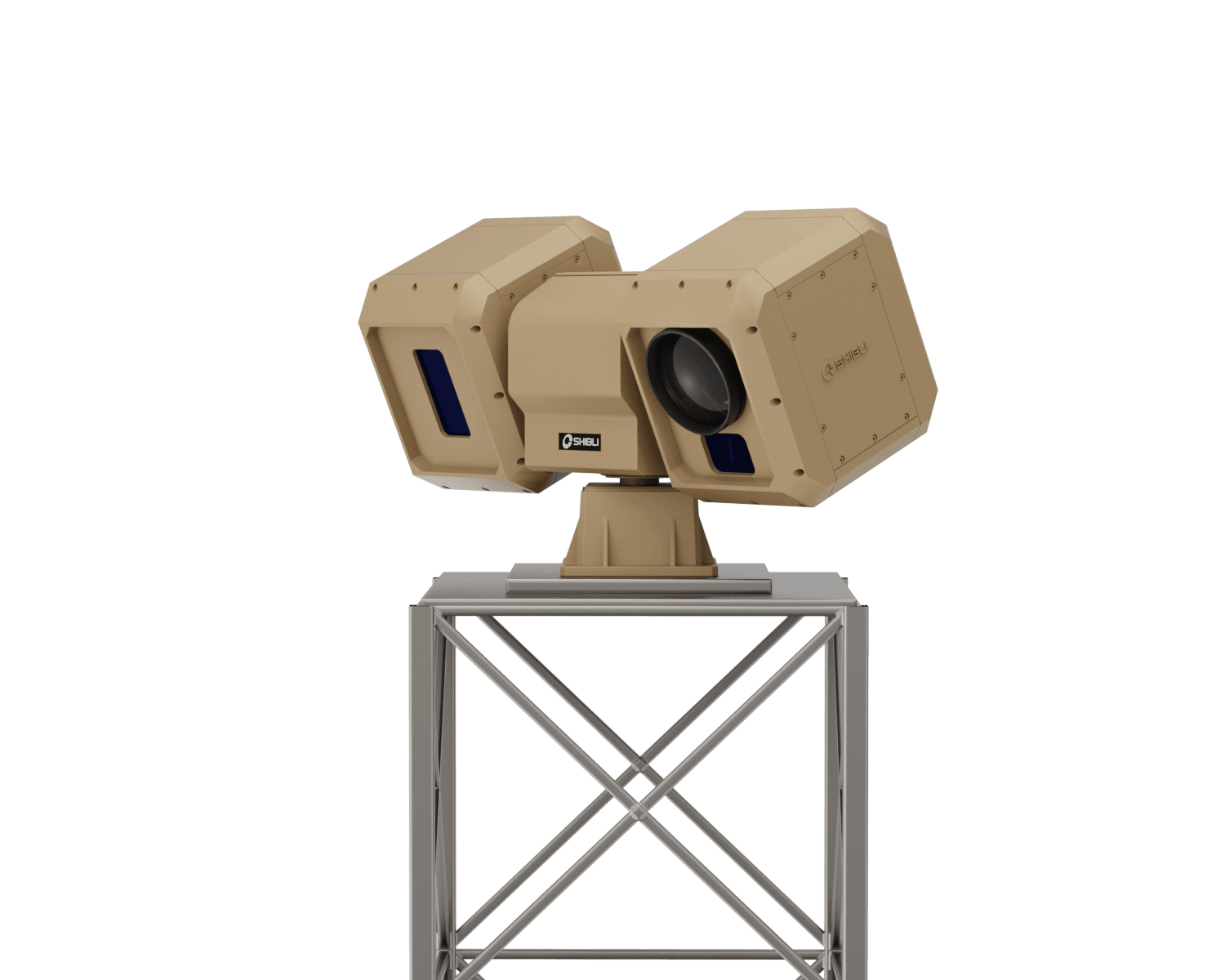

GUARDIAN UNCOOLED
MAIN FEATURES
Detector
Waterproof
Digital Zoom
Frame Rate
Polarity| Products | Guardian System | |
|---|---|---|
| MAIN THERMAL CAMERA | Detector Type | VOX Uncooled IR FPA |
| Pixel Pitch | 12 μm | |
| Pixel Resolution | 1280 × 1024 | |
| Frame Rate | 50 Hz | |
| Spectral Range | 8–14 μm | |
| NETD | < 35 mK @ 25 °C, F#1.0 | |
| Polarity | Black Hot / White Hot | |
| Color Palettes | Support (18 types) | |
| Digital Zoom | 1.0–8.0× Continuous (0.1× increments) | |
| Image Processing | NUC, Brightness & Contrast Adjustment | |
| Image Style Switching | Supported | |
| Image Mirror | Horizontal / Vertical / Horizontal & Vertical | |
| FUNCTIONS | Continuous Working Mode (Laser) | Supported |
| PTZ SPECIFICATIONS | Max Load | 15 kg |
| Load Mode | Top Load | |
| Driving | Worm and Gear Driving | |
| Pan Rotation Angle | 360° Continuous | |
| Tilt Rotation Angle | -75° to +40° | |
| Pan Speed | 0.1°/s – 60°/s | |
| Tilt Speed | 0.1°/s – 30°/s | |
| Preset Positions | 200 | |
| Presetting Precision | ±0.1° | |
| Lens Preset | Support (Adaptive to Various Lenses) | |
| Lens Control Speed | Zoom and Focus Speed Continuously Adjustable | |
| Speed Self-adaptation | Support | |
| Auto Scan | Support | |
| Auto Cruise | Support | |
| Keep Watch | Support | |
| Power Failure Memory | Support | |
| COMMUNICATION & CONTROL | Communication Interface | RS-485 / UART, RS-422 / RS-232 (Full Duplex) |
| Protocol | Pelco-D | |
| Baud Rate | 2400 / 4800 / 9600 / 19200 bps (Optional) | |
| ADVANCED FEATURES | Motorized Focus / Zoom | Yes |
| Digital Zoom | 1.0–8.0× (0.1× increments) | |
| Color Palettes | 18 Types | |
| Brightness & Contrast Adjustment | Yes | |
| NUC (Non-Uniformity Correction) | Yes | |
| Temporal Filter | Yes | |
| Spatial Filter | Yes | |
| Digital Detail Enhancement | Yes | |
| Laser Eye Safety Precautions | Yes | |
| IR ILLUMINATOR | Input Voltage | DC 12 V ±10% |
| Input Current | 1.2 A ±0.2 A | |
| Size (L × W × H) | 64 × 27.4 × 40.6 mm | |
| Initialization Time | < 2 s | |
| Total Power | 17 W | |
| Optical Output Power | 3.8 ±0.3 W | |
| Center Wavelength | 850 ±10 nm | |
| Illumination Angle | 2.0° – 70° (Continuous Zoom) | |
| Effective Range | ≥ 800 m | |
| ENVIRONMENTAL | Operating Temperature | -25 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C | |
| Shock & Vibration | Per Applicable Standard | |
| Protection Level | IP66 (IP67 on Request) | |
| SYSTEM SPECIFICATIONS | Input Voltage | AC 24 V ±15% (50/60 Hz) / DC 24 V ±10% |
| Consumption Power | < 90 W | |
| Interface | 10/100M Ethernet ×1, AC24V / DC24V ×1 | |
| Working Temperature | -35 °C to +65 °C | |
| Humidity | < 90% RH | |
| Anti-lightning | 4000 V | |
| Salt Fog Resistance | pH 6.5–7.2, Continuous Spray 48 h | |
| Material | Aluminum Alloy | |
| Weight | 13 kg |
ACCESSORIES
Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
