COOLED EO SURVEILLANCE SYSTEM
Guardian Pro addresses critical perimeter, border, and coastal surveillance challenges by combining cooled MWIR thermal imaging with high-resolution EO cameras for all-weather, day/night detection and continuous monitoring where early threat detection is essential for security operations. The system's advanced sensor fusion and automated tracking algorithms process multi-spectral data to identify and follow targets at extended ranges, even in degraded visibility conditions, while providing real-time alerts, continuous target tracks, and automated cueing to command and control systems that enable operators to maintain persistent situational awareness and coordinate rapid response across extended security zones.
EXPLORE GUARDIAN COOLED

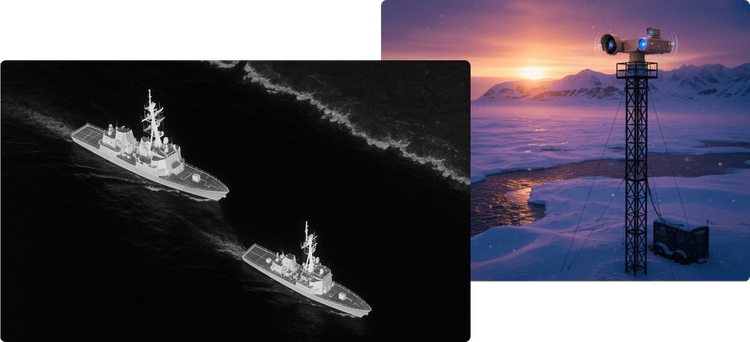

COASTAL SURVEILLANCE
Guardian Pro delivers real-time, 24/7 coastal monitoring powered by advanced cooled thermal imaging, radar fusion, and AI-driven tracking. Purpose-built for harsh marine environments, it achieves unmatched detection range and image clarity, even in complete darkness, heavy fog, or storm conditions.
Engineered with cooled infrared sensor technology, Guardian Pro offers superior thermal sensitivity, detecting even the smallest heat signatures from vessels, intrusions, or potential threats—long before they reach your perimeter. Its ruggedized design and intelligent analytics suite ensure mission-critical reliability for border protection, naval operations, and critical coastal infrastructure security.
Engineered with cooled infrared sensor technology, Guardian Pro offers superior thermal sensitivity, detecting even the smallest heat signatures from vessels, intrusions, or potential threats—long before they reach your perimeter. Its ruggedized design and intelligent analytics suite ensure mission-critical reliability for border protection, naval operations, and critical coastal infrastructure security.
UNITING EO PRECISION WITH RADAR INTELLIGENCE
Through intelligent sensor fusion, Guardian Pro delivers unmatched situational awareness—Radar identifies, EO verifies, and AI decides. Its modular architecture supports wide-area surveillance, counter-UAS missions, and border security operations. From early detection to visual confirmation, Guardian Pro empowers operators with speed, clarity, and confidence in every mission environment.
Features:
Radar detection, EO/IR tracking, and AI-driven fusion for all-weather surveillance. Rugged,
secure, and mission-ready for modern defense applications.
secure, and mission-ready for modern defense applications.
ALL-TERRAIN. ALL-WEATHER. ALWAYS WATCHING.

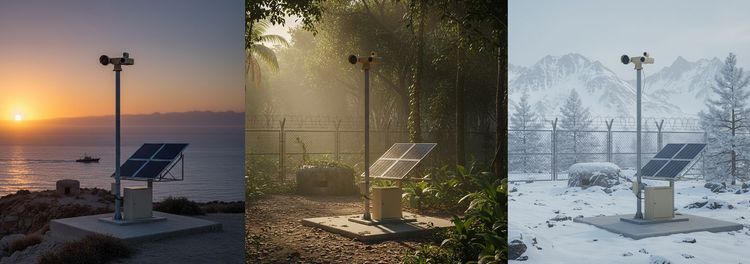

From the frozen ridgelines to the burning dunes, through dense jungles and coastal frontiers — Guardian Pro stands vigilant. Engineered for uninterrupted surveillance and border protection, it is a fully autonomous, solar-powered solution that delivers real-time situational awareness, day or night, in any environment.
With its rugged, all-weather enclosure, AI-assisted optics, and secure command center connectivity, Guardian Pro ensures total operational visibility across the toughest terrains. Each unit operates as an intelligent surveillance node, seamlessly integrated into a networked defense grid for live video, analytics, and rapid response coordination.
Wherever the mission demands — snow, sea, sand, or forest — Guardian Pro delivers precision surveillance, unmatched protection, and unstoppable performance.
With its rugged, all-weather enclosure, AI-assisted optics, and secure command center connectivity, Guardian Pro ensures total operational visibility across the toughest terrains. Each unit operates as an intelligent surveillance node, seamlessly integrated into a networked defense grid for live video, analytics, and rapid response coordination.
Wherever the mission demands — snow, sea, sand, or forest — Guardian Pro delivers precision surveillance, unmatched protection, and unstoppable performance.
GUARDIAN MOBILE SURVEILLANCE & PROTECTION
The Guardian Pro Vehicle-Mounted System redefines mobile surveillance and threat detection for modern defense and security forces. Engineered for rugged, all-terrain performance, it integrates cooled thermal imaging, advanced radar, high-resolution electro-optics, and secure communications into a fully modular platform built for on-the-move operations.
Mounted on tactical vehicles, Guardian Pro provides 360° situational awareness and real-time target acquisition, enabling operators to detect, identify, and track threats while in motion. Its stabilized sensor suite ensures pinpoint accuracy across rough terrain, while networked connectivity keeps command centers continuously updated for faster, coordinated responses.
Mounted on tactical vehicles, Guardian Pro provides 360° situational awareness and real-time target acquisition, enabling operators to detect, identify, and track threats while in motion. Its stabilized sensor suite ensures pinpoint accuracy across rough terrain, while networked connectivity keeps command centers continuously updated for faster, coordinated responses.
C2 COMMAND & CONTROL WITHOUT BOUNDARIES
Guardian integrates effortlessly with third-party or in-house C2 platforms, offering maximum interoperability and minimal setup. Its scalable design supports seamless expansion, while an intuitive interface enables real-time daylight, thermal, and IR monitoring with drag-and-drop control.
Behind the scenes, Guardian delivers intelligent workload management with device prioritization, advanced security, smart alarms, video archiving, and powerful automation. Whether on your C2 or ours Guardian keeps you connected, protected, and in control, in any light, any time.
Behind the scenes, Guardian delivers intelligent workload management with device prioritization, advanced security, smart alarms, video archiving, and powerful automation. Whether on your C2 or ours Guardian keeps you connected, protected, and in control, in any light, any time.
FEATURES
Sensor Control & Switching
Real-Time Video Feed
Target Detection & Tracking
Map Integration (GIS)
Event & Alert Management
PTZ Control
AI-Based Analytics
Multi-Cam & Network Support
Comms & Networking
INTEGRATED RADAR + EO/IR SURVEILLANCE TOTAL SITUATIONAL AWARENESS
Key Highlights:
- Radar-EO/IR sensor fusion for real-time situational awareness
- Automatic radar cueing and target handover to Guardian EO/IR
- Long-range detection and identification with laser range finder integration
- Networked operation for remote command and control
- All-weather, day/night persistent monitoring

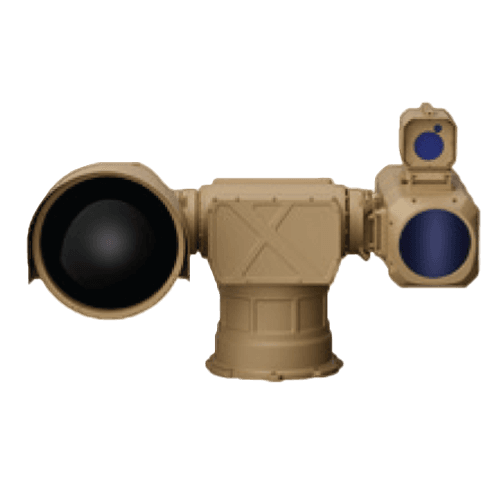

SPECIFICATIONS
PRO
Series
Specifications
MAIN FEATURES
DetectorVOx uncooled IR FPA
WaterproofIP66
Digital Zoom1.0 ~ 8.0× Continuous Zoom
Frame Rate50 Hz
PolarityBlack hot / White hot
| Products | Guardian Pro 640×512 | Guardian Pro 1280×1024 | |
|---|---|---|---|
| Thermal Imager Camera (Night) | Type | Cooled | Cooled |
| Spectral Range | 3–5 μm | 3–5 μm | |
| Sensor Resolution | 640 × 512 | 1280 × 1024 | |
| Pixel Size | 15 μm | 10 μm | |
| Focal Length | 30–660 mm F/4.0 | 40–1000 mm F/4.0 | |
| Wide FOV | 18.2° × 14.6° ± 10% | 18.1° × 14.3° ±10% | |
| Narrow FOV | 0.83° × 0.67° ± 10% | 0.73° × 0.58° ±10% | |
| Functions | AGC, Brightness/Contrast, Polarity, Non-uniformity Correction | AGC, Brightness/Contrast, Polarity, Non-uniformity Correction | |
| TV Camera (Day) | Sensor Type | 1/1.8″ CMOS Sensor | 1/1.7″ CMOS Sensor |
| Sensor Resolution | Full HD 1080p (1920 × 1080) | Full HD 1080p (1920 × 1080) | |
| Optical Zoom | ×52 | ×60 | |
| Digital Zoom | ×16 | ×16 | |
| Focal Length | Not specified | 20–2000 mm | |
| Wide HFOV | 19.0° × 16.0° ± 10% | 24.5° × 14.3° ±10% | |
| Narrow HFOV | 0.32° × 0.27° ± 10% | 0.21° × 0.16° ±10% | |
| Functions | Heat Haze Reduction, Visibility Enhancer, Defog, AGC Mode | Heat Haze Reduction, Visibility Enhancer, Defog, AGC Mode | |
| Estimated DRI Ranges – TV Camera (Day) | Detection range (Human) | 17518 m | 16889 m |
| Recognition range (Human) | 3504 m | 3378 m | |
| Identification range (Human) | 1752 m | 1689 m | |
| Detection range (Vehicle) | 16642 m | 40889 m | |
| Recognition range (Vehicle) | 3328 m | 8178 m | |
| Identification range (Vehicle) | 1664 m | 4089 m | |
| Detection range (Truck) | 40292 m | 75378 m | |
| Recognition range (Truck) | 8058 m | 15076 m | |
| Identification range (Truck) | 4029 m | 7538 m | |
| Detection range (DJI Mavic) | 74324 m | 3378 m | |
| Recognition range (DJI Mavic) | 14865 m | 676 m | |
| Identification range (DJI Mavic) | 7432 m | 338 m | |
| Estimated DRI Ranges – Thermal Imager (Night) | Detection range (Human) | 18578 m | 42222 m |
| Recognition range (Human) | 4644 m | 10556 m | |
| Identification range (Human) | 2322 m | 5278 m | |
| Detection range (Vehicle) | 44978 m | 102222 m | |
| Recognition range (Vehicle) | 11244 m | 25556 m | |
| Identification range (Vehicle) | 5622 m | 12778 m | |
| Detection range (Truck) | 82916 m | 188444 m | |
| Recognition range (Truck) | 20729 m | 47111 m | |
| Identification range (Truck) | 10364 m | 23556 m | |
| Detection range (DJI Mavic) | 3716 m | 8444 m | |
| Recognition range (DJI Mavic) | 929 m | 2111 m | |
| Identification range (DJI Mavic) | 464 m | 1056 m | |
| Laser Range Finder (Optional) | Wavelength | 1.54 μm | 1.54 μm |
| Range | 100 m – 15000 m | 100 m – 15000 m | |
| Measurement Accuracy | ±2 m | ±2 m | |
| Pan-Tilt Platform | Pointing Accuracy | 0.001° | 0.001° |
| Azimuth Range | 360° × n (continuous) | 360° × n (continuous) | |
| Elevation Range | -90° to +90° | -90° to +90° | |
| Max Speed (Azimuth & Elevation) | Up to 80°/s | Up to 80°/sec | |
| General Specifications | Weight (max) | 60 kg | 60 kg |
| Dimensions | 500 × 890 × 540 mm | 500 × 890 × 540 mm | |
| Data & Video Interface | Ethernet, Fiber Optics (optional) | Ethernet, Fiber Optics (optional) | |
| Power Supply | 48 V DC ± 10% | 48 V DC ± 10% | |
| Power Consumption | 500 W | 500 W | |
| Operating Temperature | -32 °C to +45 °C | -32 °C to +45 °C |
ENDLESS VIGILANCE. ZERO DOWNTIME.
Equipped with cooled MWIR thermal sensors, Full HD day cameras, and intelligent target tracking, Guardian Pro delivers high-precision detection, recognition, and identification — even in low visibility or extreme conditions.
ACCESSORIES
Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
