Unleash the Power of the Night

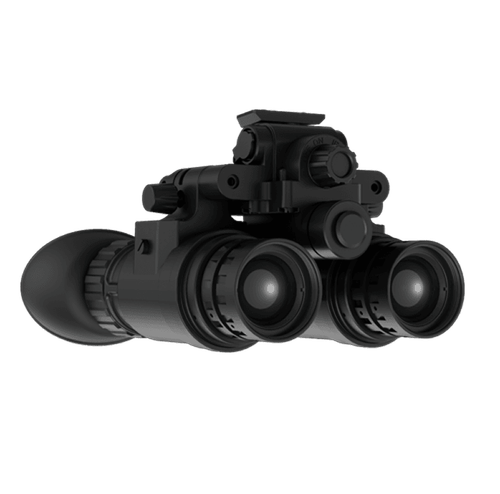

Unleash the unparalleled power of the Orca-NV : a binocular night vision goggle system equipped with cutting-edge image intensifier tubes.
EXPLORE ORCA NV
beyond the human eye.
BUILT-IN INFRA RED (IR) ILLUMINATOR
The built-in IR light source guarantees seamless map reading and precise short-range illumination in total darkness. They provide convenient use both when using monoculars together, and when used separately.
IMPERVIOUS TO WATER

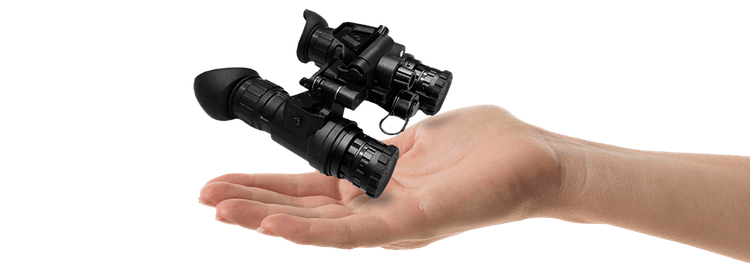

FEATHER WEIGHT
SPECIFICATIONS
Specifications
MAIN FEATURES
Submersible
Objective Focal Length
Eye Relief
Power Supply
Weight| Products | ORCA-NV | |
|---|---|---|
| Night Vision Channel | IIT Generation | Gen 3+ Black and White with Auto Gating Function |
| FOM | >2000 | |
| Resolution | 68+ lp/mm | |
| Signal-to-Noise Ratio | 29-31 | |
| Optical Specifications | Optical Magnification | 1x |
| Exit Pupil Diameter | 22.5 mm | |
| Focus Adjustment Range | 20 cm to ∞ | |
| Field of View (F.O.V.) | 40° ± 1° | |
| Objective Focal Length | >25 mm | |
| Eye Relief | 25 mm | |
| Objective F Number | 1:1, 2 | |
| Lens Focus Range | 0.25 m to ∞ | |
| Eye Piece Lens Aperture | 22.5 | |
| Gain | Automatic and Manual Gain Control | |
| Diopter Adjustment Range of Ocular | -6 to +2 dptr | |
| Interpupillary Distance Adjustment Range | 54 – 77 mm | |
| Electrical Specifications | Image Intensifier Warranty Resource | 10,000 hours |
| Power Supply | AA Li, 1.5V External Battery Compartment (20HR) | |
| Bright Light Cut Off | Available | |
| Environmental Specifications | Operating Temperature Range | -25 °C to +50 °C |
| Humidity | Up to 98% RH | |
| Temperature Range for Storage | -20 °C to +60 °C | |
| Specification | MIL-STD-810G | |
| Submersible | IP68 (Submersible up to 15 m) | |
| Dimensions and Weight | Overall Dimensions | 160 × 100 × 80 mm |
| Helmet Mounting Adapter Dimension | As per NATO standard | |
| Weight | 600 g | |
| Shelf Life | 10 Years |
ACCESSORIES
Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
