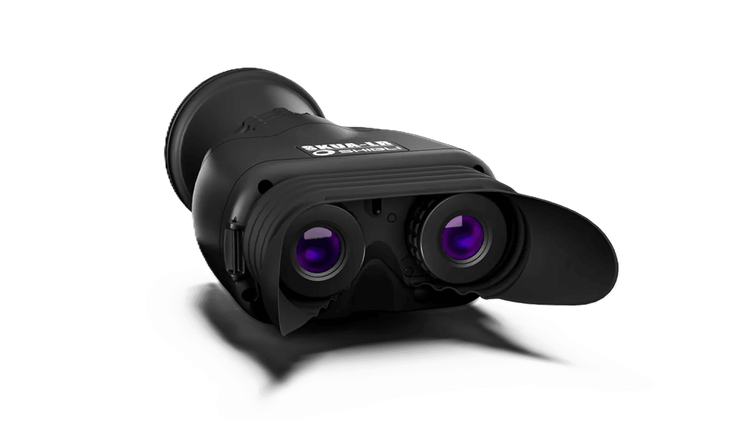

Your Most Trusted Thermal Binocular
“Chosen in situations where clarity is of utmost priority.”

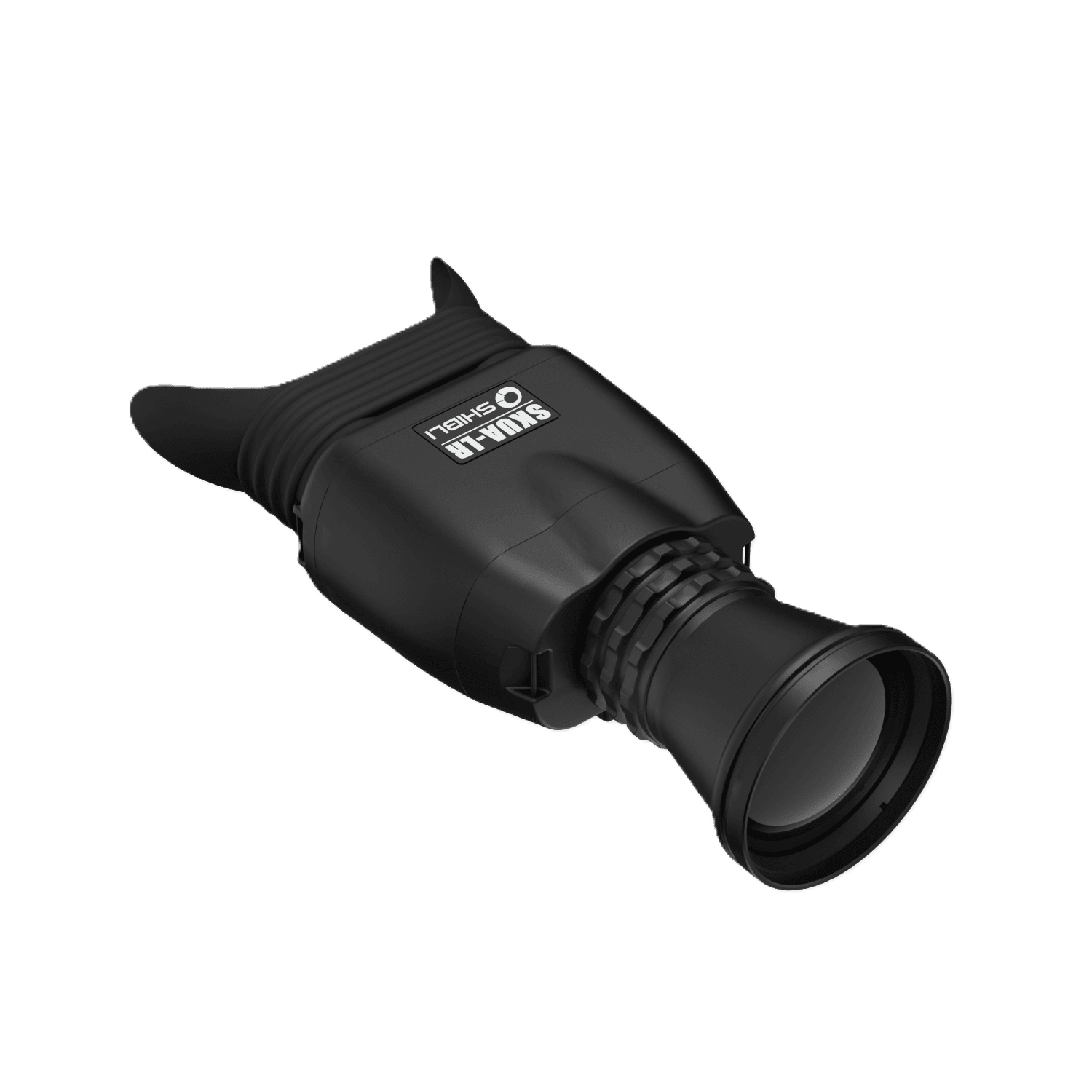

EXPLORE SKUA LR

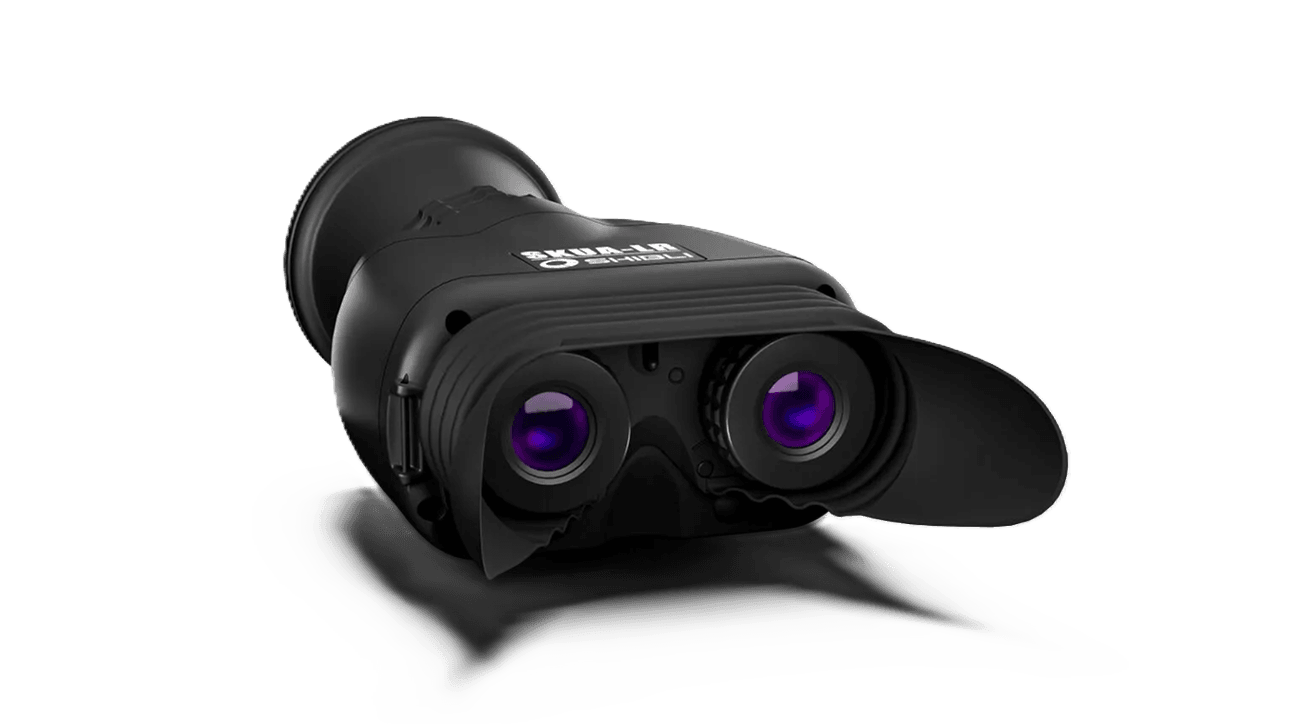

The Natural Way To See
beyond the human eye.

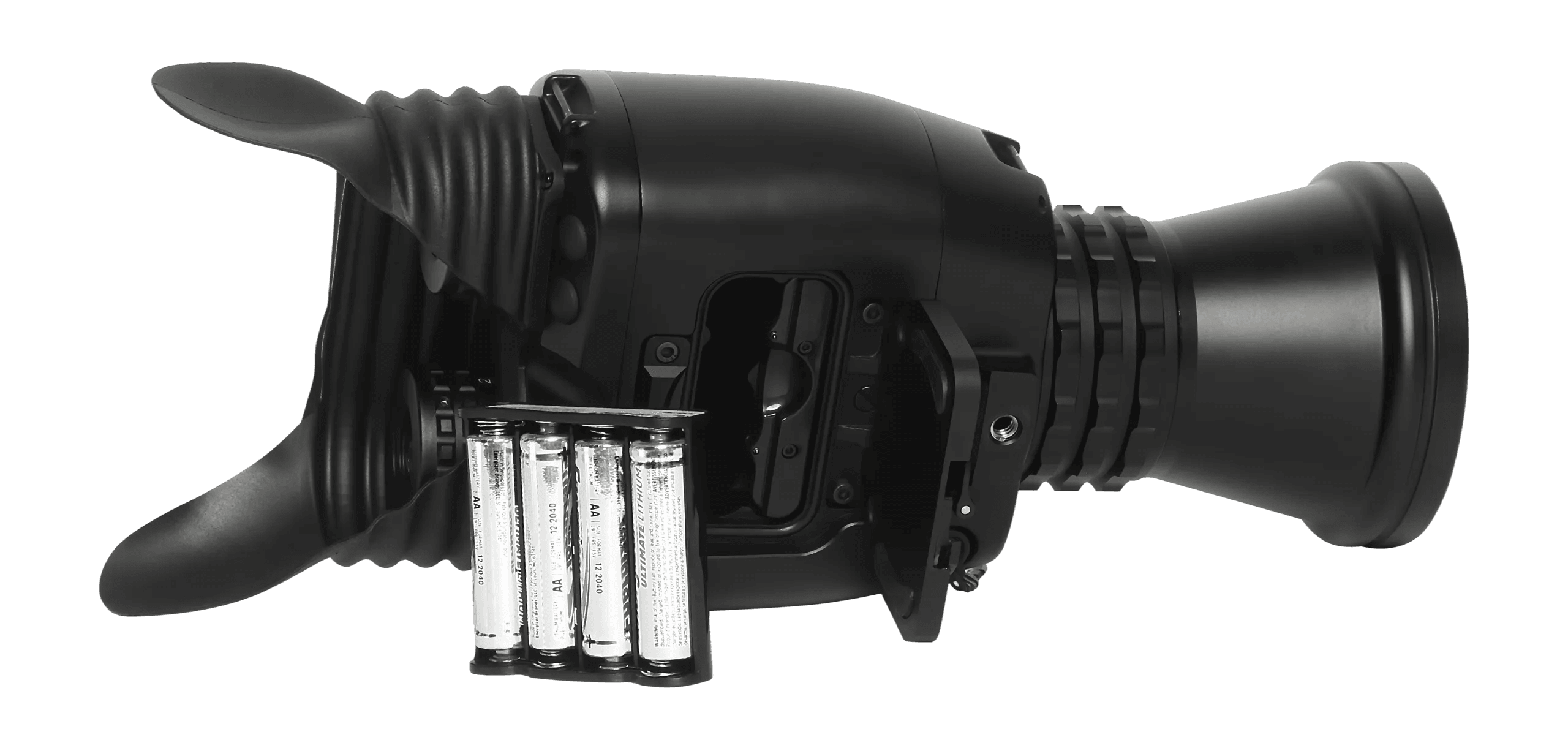

Instant & Endless Power
See Further & Beyond
Human 2500m
Vehicle 4000m
MORE FEATURES
4x Electronic Zoom
Clear & Crisp HD digital image for improved focus and target detection.
Inbuilt Image Storage
Inbuilt image and video recording capabilities for sharing and perusal at convenience.
Lightweight Metal Frame
Weighing in at <1.6 kg, the SKUA-LR is easily portable for effective and rugged usability.
Ergonomic Ops
User friendly controls and power efficient operational readiness.

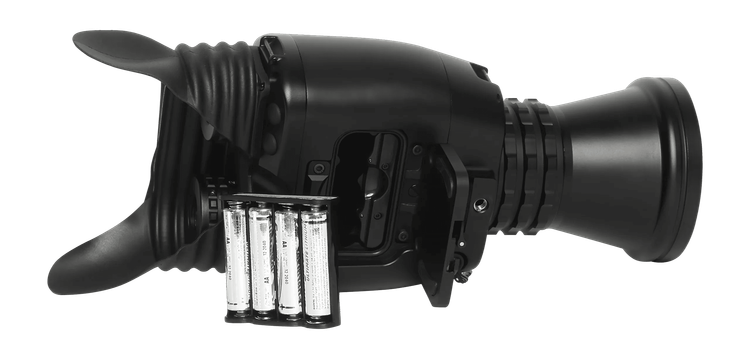

Battery > 10 Hours
Power efficient on 4AA batteries, cutting down on device down time making it energy efficient.
Video + USB Connection
Equipped with USB connection port to deliver high quality thermal video display on external sources such as LCD screens.
FOV 6.20 x4.60
Superior visibility in your field of view for timely detection.
UNMATCHED SITUATIONAL AWARENESS
DRI RANGE PERFORMANCE WITH ACTUAL TARGETS
Oblivious to the weather
SPECIFICATIONS

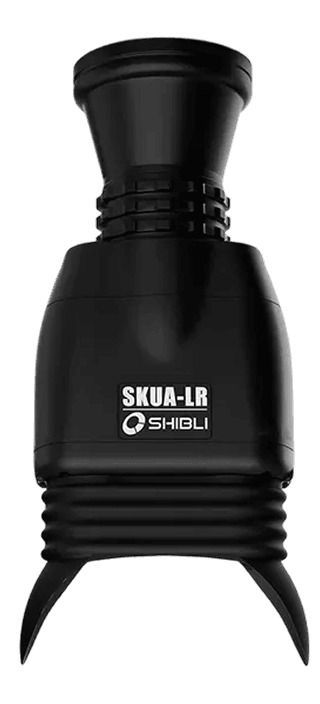

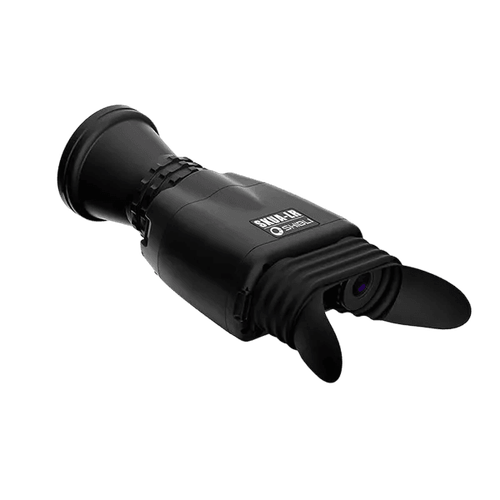

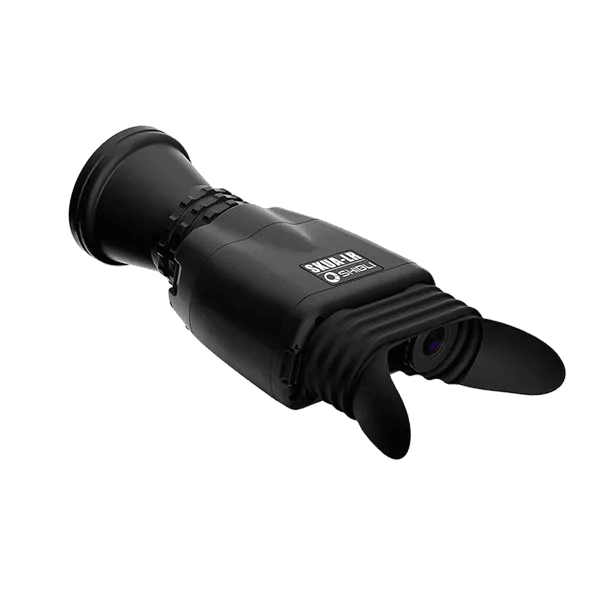

SKUA-LR
MAIN FEATURES
Detector
Objective Lens
Magnification
Field of view (HxV)
Detection range (Vehicle)| Products | SKUA LR 17µm | |
|---|---|---|
| Sensor | Type | Uncooled |
| Detector Resolution (Pixels) | 640 × 480 | |
| Pixel Pitch | 17 μm | |
| Thermal Sensitivity (NETD) | ≤ 100 mK | |
| Spectral Band | 8–12 μm | |
| Frame Rate | 30 Hz | |
| Optics | Objective Lens | 100 mm |
| F Number | 1.2 | |
| Digital Magnification | 1× / 2× / 4× | |
| Optical Magnification | 4× | |
| Field of View (H × V) | 6.2° × 4.6° | |
| Diopter Adjustment Range | +2 to −6 | |
| Display | Type | OLED |
| Range Performance | Detection Range (Human) | 2 500 m |
| Recognition Range (Human) | 1 200 m | |
| Identification Range (Human) | 800 m | |
| Detection Range (Vehicle) | 4 000 m | |
| Recognition Range (Vehicle) | 2 000 m | |
| Identification Range (Vehicle) | 1 200 m | |
| Photo, Video Recorder | Image Storage (inbuilt) | Yes |
| Image Storage Qty | 128 Images | |
| Video Recording Duration | 15 min | |
| Environmental Characteristics | Operating Temperature Range | -35 °C to +55 °C |
| Storage Temperature Range | -40 °C to +60 °C | |
| Relative Humidity | 30% < RH < 90% | |
| STD for Shock and Vibration | MIL-STD-810G | |
| STD for Water Immersion | MIL-STD-810G | |
| Water Immersion | 1 m – 30 min, ΔT = 27 °C | |
| Power Supply | Battery Time (Rechargeable) | 10 hours |
| External Power Input | Yes | |
| Start up time | Startup Time | ≤ 5 seconds |
| Dimensions | Dimension Complete | 302 × 142 × 116.62 mm |
| Weight | Weight (Complete) | 1.6 kg |
| Weight (without battery pack & female picatinny) | 1.4 kg | |
| Color Pallettes | Available Colours | White hot / Black hot |

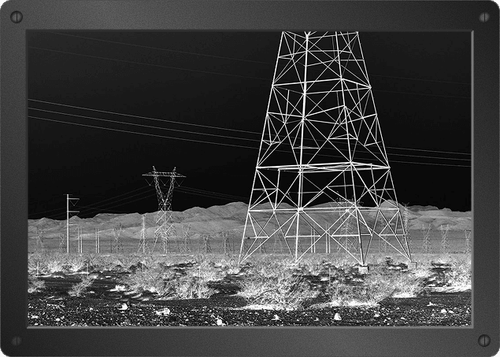

POLARITY & COLOR PALETTES
The SKUA-LR is equipped with both white hot and black hot image display options presenting detail as per requirement of the users so that visibility is optimum in all conditions.
Black Hot
ACCESSORIES
Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
View Smart Integration on Mobile
