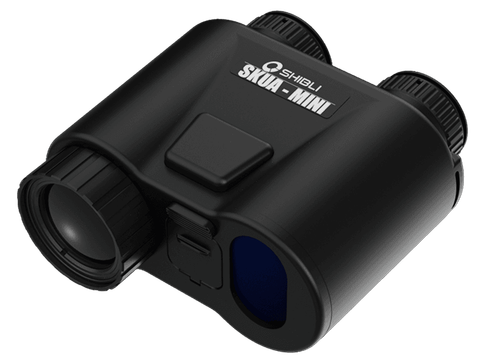

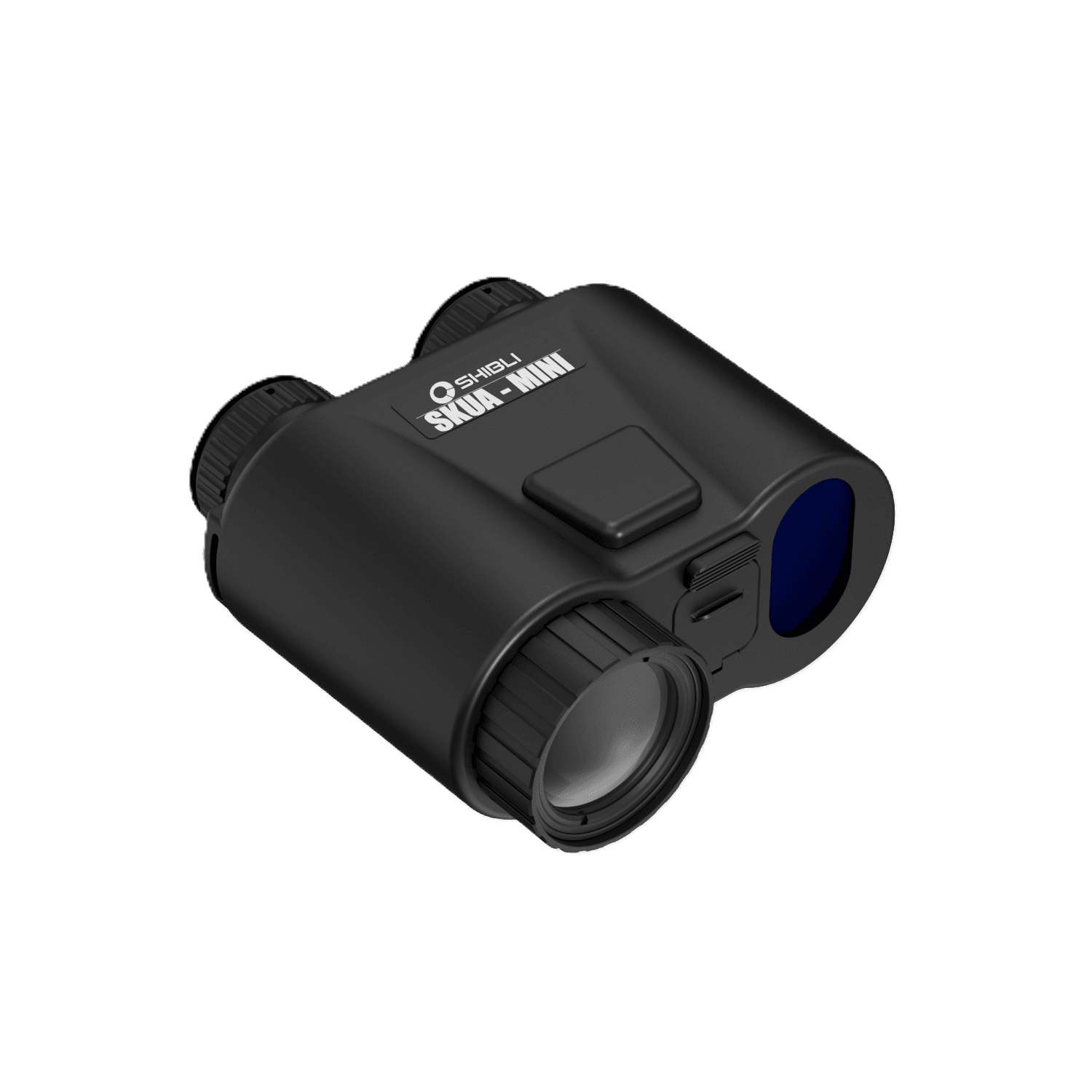

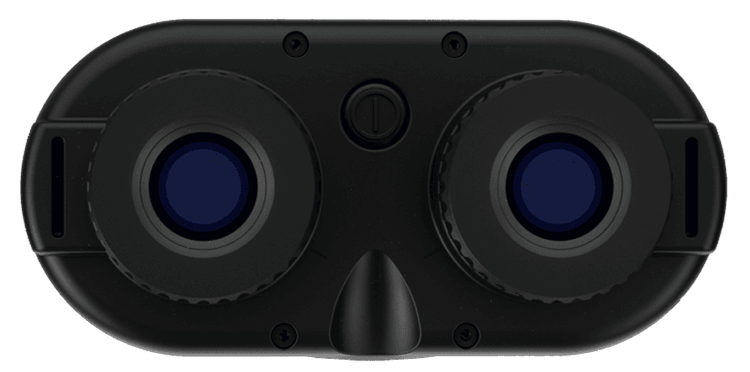

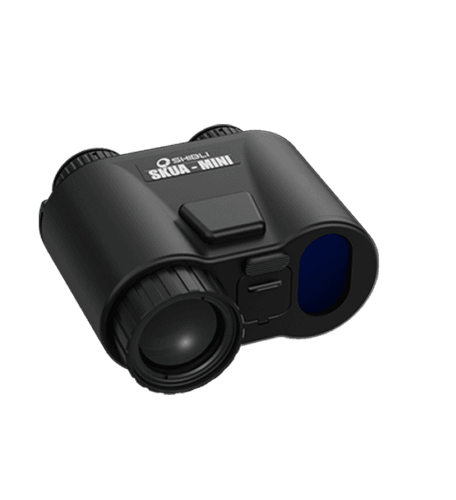

SKUA-MINI Thermal Bino
SKUA MINI is compact thermal binocular for enthusiasts and users seeking a quality thermal image with a lightweight and highly portable thermal binocular which can be a part of their gear whenever they are in outdoors.
EXPLORE SKUA MINI
12/04/25 15:32
24
LAT: 33° 35' 41.63"N
LON: 72° 43' 24.73"E
X1R-HOT
See Beyond Boundaries With
SKUA MINI
Experience how thermal vision uncovers details hidden far
beyond the human eye.
beyond the human eye.
LaserMenuNUCZoom/RECPol/ImgLRF
MIGHTY ON PERFORMANCE
Although SKUA-MINI is tiny in presence but its might in performance. The sight can detect vehicle size objects at long distance ranges.
Human 1500m
Vehicle 3000m

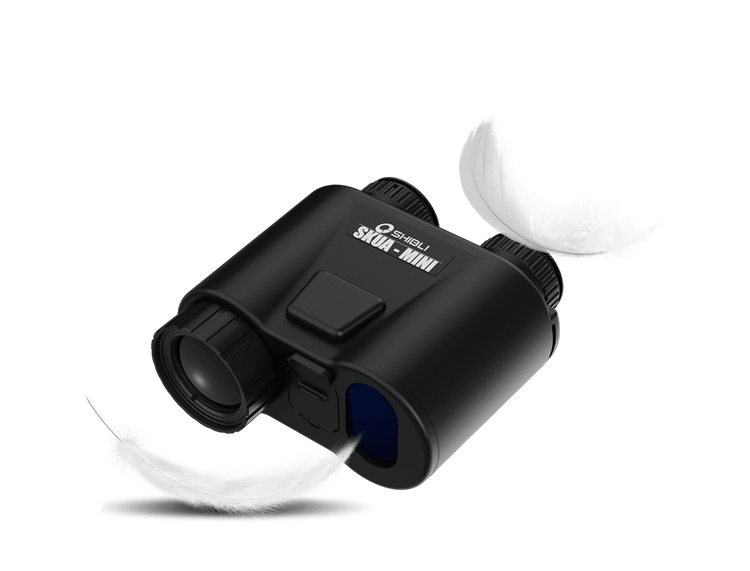

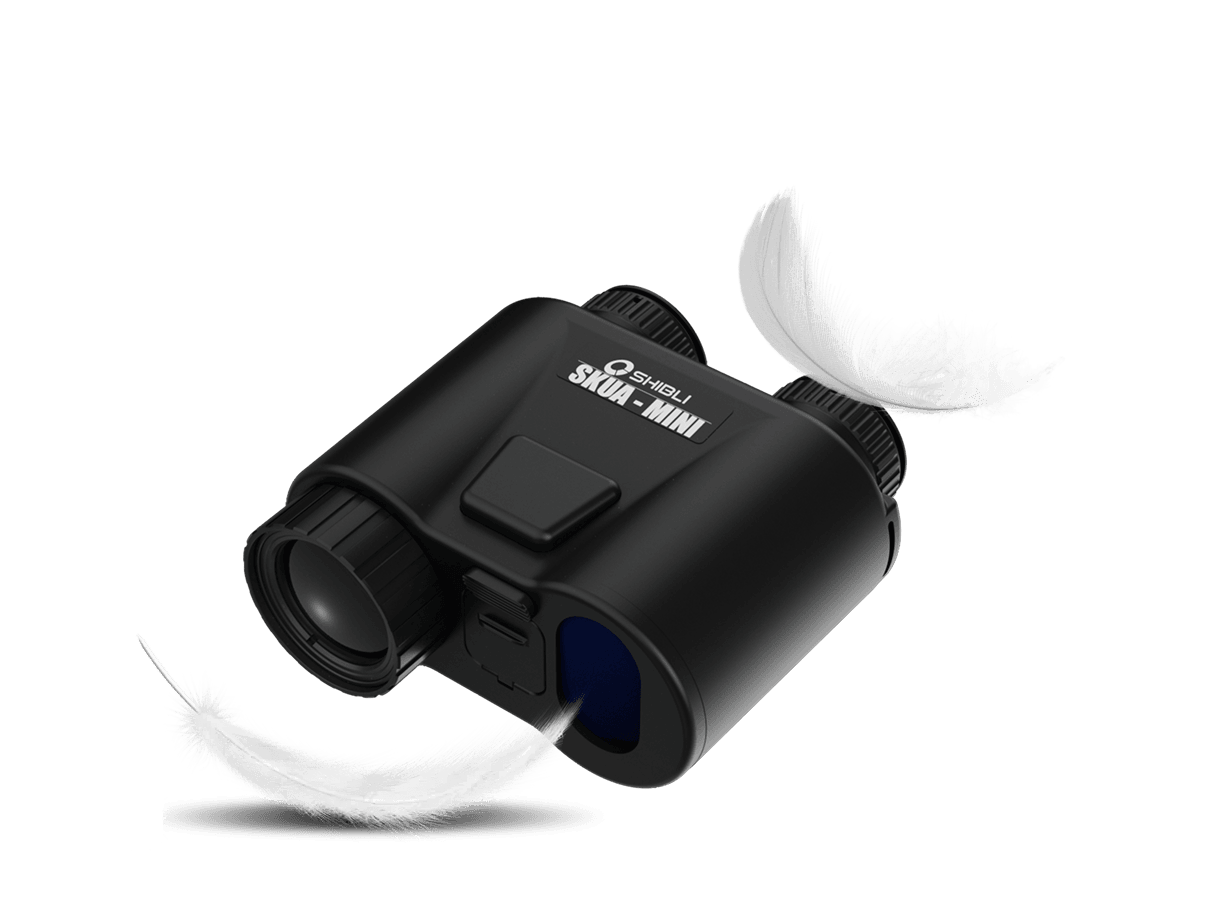

FEATHER WEIGHT
Light in the hand SKUA-MINI is only 500 grams. The sight offers great agility and portability when carrying in open fields or during long duration observations even in handheld mode.
TOUGHER THAN TOUGH
SKUA-MINI is small and tiny but boasts a robust design capable to survive harsh weather conditions. The sight is fully water proof and sealed giving user the liberty to use the sight whenever wherever required.
EVERYONE'S FIRST CHOICE

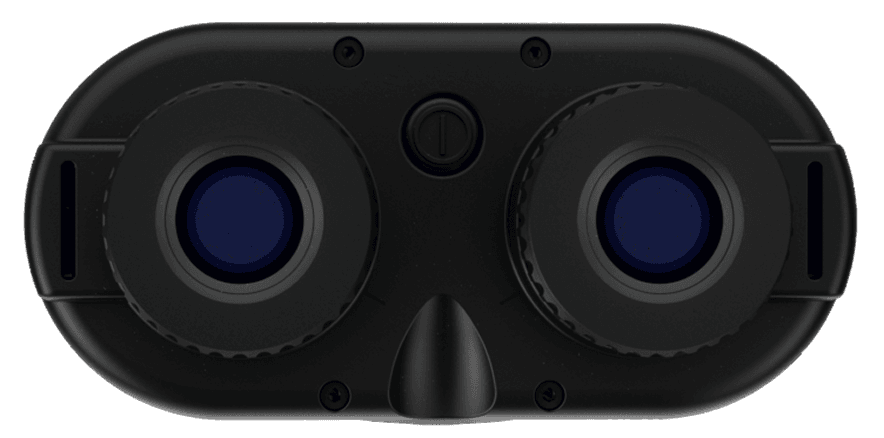

The sight retro-designed keeping in view the ease users share with conventional design of Binoculars. To enhance the same experience SKUA-MINI offers high quality thermal image in the same shell with similar weight when compared to a standard day binocular.

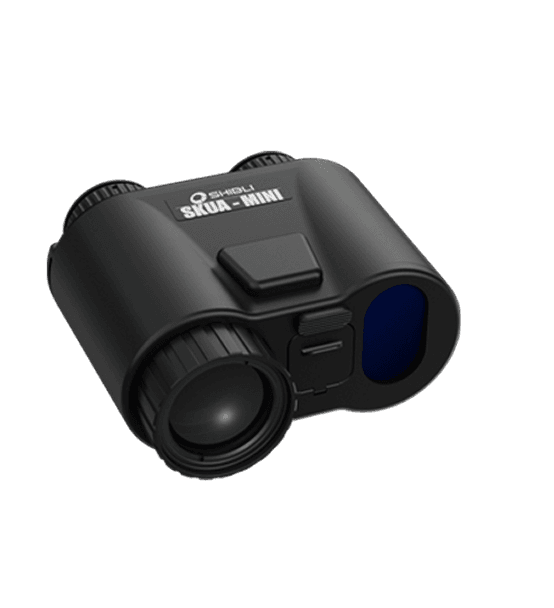

SPECIFICATIONS
SKUA MINI
MAIN FEATURES
Detector640×480 12µm (NETD <50 mK)
Objective Lens50mm
Magnification2.8x
Field of view (HxV)8.8×6.6
Detection range (Vehicle)3000m
| Products | SKUA-MP Pro 12µm | SKUA-MP Pro 17µm | |
|---|---|---|---|
| Sensor | Type | uncooled | uncooled |
| Detector Resolution (Pixels) | 640 × 480 | 640 × 480 | |
| Pixel Pitch | 12µm | 17µm | |
| Thermal Sensitivity (NETD) | ≤ 50mK | ≤ 50mK | |
| Spectral Band | 8µm-12µm | 8µm-12µm | |
| Frame rate | 50Hz | 50Hz | |
| Optics | Optics | 80mm | 80mm |
| Digital Magnification | 1x, 2x, 4x | 1x, 2x, 4x | |
| Optical Magnification | 4.5x | 4x | |
| Field of view (HxV) | 5.5×4.1 | 6.2×4.6 | |
| Spectral Band | 2 to -6 | 2 to -6 | |
| Display | Type | OLED | OLED |
| OLED Resolution (Pixels) | 640×480 | 640×480 | |
| Range Performance | Detection range (Human) | 2000 | 2500 |
| Recognition range (Human) | 1100 | 1200 | |
| Identification range (Human) | 600 | 800 | |
| Detection range (Vehicle) | 4000 | 4000 | |
| Recognition range (Vehicle) | 1800 | 2500 | |
| Identification range (Vehicle) | 900 | 1200 | |
| Photo, Video Recorder | Video Recording (In-Built) | Yes | Yes |
| Image Storage (inbuilt) | Yes | Yes | |
| Image Storage (Qty) | Yes | Yes | |
| Video Recording Duration | Yes | Yes | |
| Memory Size | 32GB | 32GB | |
| Environmental Characteristics | Operating temperature range | -35°C to +55°C | -35°C to +55°C |
| Storage temperature range | -40°C to +60°C | -40°C to +60°C | |
| Relative Humidity | 30%-90% | 30%-90% | |
| STD for Shock and Vibration | MIL-STD-810G | MIL-STD-810G | |
| STD for Water Immersion | MIL-STD-810G | MIL-STD-810G | |
| Water Immersion | 1m - 30min, 4H - 27°C | 1m - 30min, 4H - 27°C | |
| Compatibility | Standard Mount Name | Universal 1/4 Tripod Interface | Universal 1/4 Tripod Interface |
| Mounting Type | Screw | Screw | |
| Power Supply | Battery Type | 3×18650 | 3×18650 |
| Battery Time (Rechargeable) | < 5 hrs | < 5 hrs | |
| External Power Input | Yes | Yes | |
| Start up time | Startup Time | ≤ 6 sec | ≤ 6 sec |
| Weight | Weight (Complete), kg | < 1.5 kg | < 1.5 kg |
| Safety Cass for laser equipment according to IEC 60825-1:2014 | Class 1, Eye-Safe | Class 1, Eye-Safe | |
| Laser Rangefinder | Wavelength | 1550 nm | 1550 nm |
| Max. measuring range | 3km, 4km, 6km | 3km, 4km, 6km | |
| Measurement accuracy | +/- 1m | +/- 1m | |
| GPS Included | Yes | Yes | |
| GPS GLOBAL POSITIONING SYSTEM | Supported formats | LAT LONG/UTM | LAT LONG/UTM |
| Position Accuracy (horizontal) | < 2.5 m | < 2.5 m | |
| Digital Magnetic Compass | DMC (yes/no) | Yes | Yes |
| Compass unit | (degrees/mils) | (degrees/mils) | |
| Target Localization | Target Localization | Yes | Yes |
| COLOR PALLETTES | Available COLOURS | White hot / Black hot | White hot / Black hot |
POLARITY & COLOR PALETTES
The SKUA-MINI is equipped with both white hot and black hot image display options presenting image detail options for convenience of users so that visibility is maximized.
Black Hot
