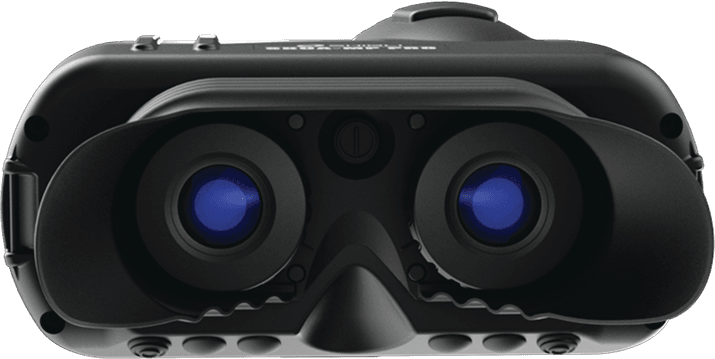

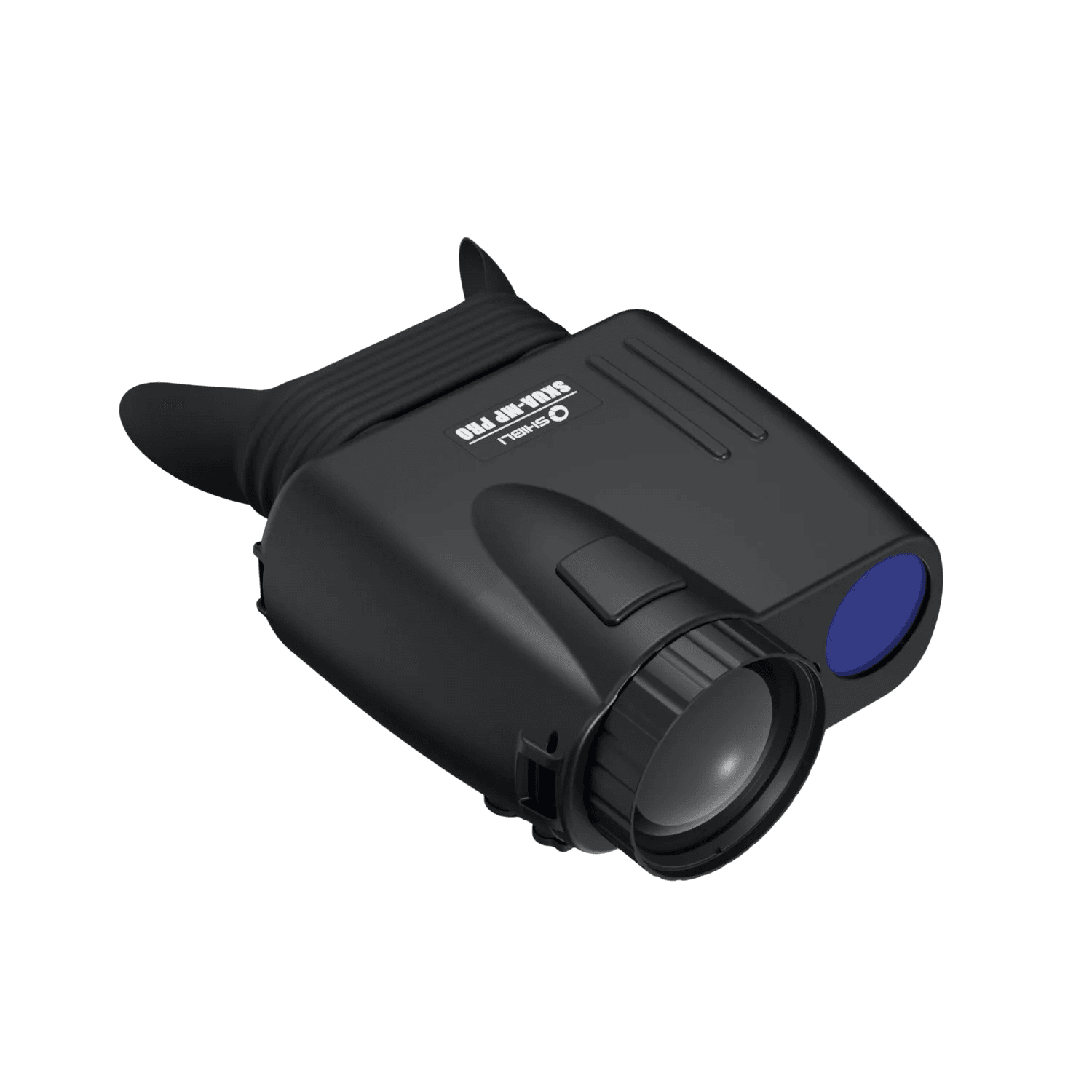

ADVANCED MULTI-FUNCTION THERMAL BINO
Engineered for precision and reliability, the SKUA MP PRO 100 is an LRF-equipped (6 km) advanced multi-purpose thermal binocular providing superior thermal imaging and enhanced detection capabilities to support informed decision-making in complex operational environments. A 100mm precision lens, integrated HD day camera, GPS/BeiDou, digital magnetic compass and fall-of-shot correction make it a complete forward observation tool, while live streaming via the SHIBLI App keeps command connected.

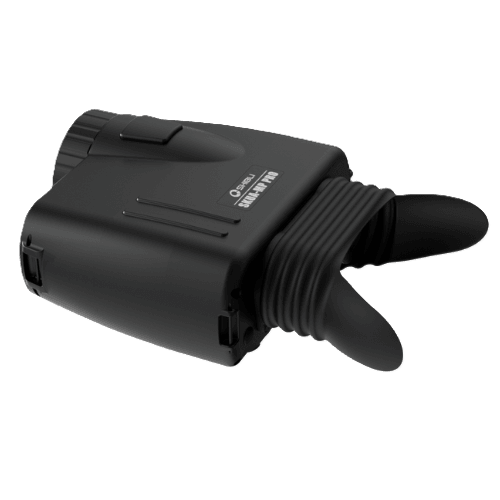

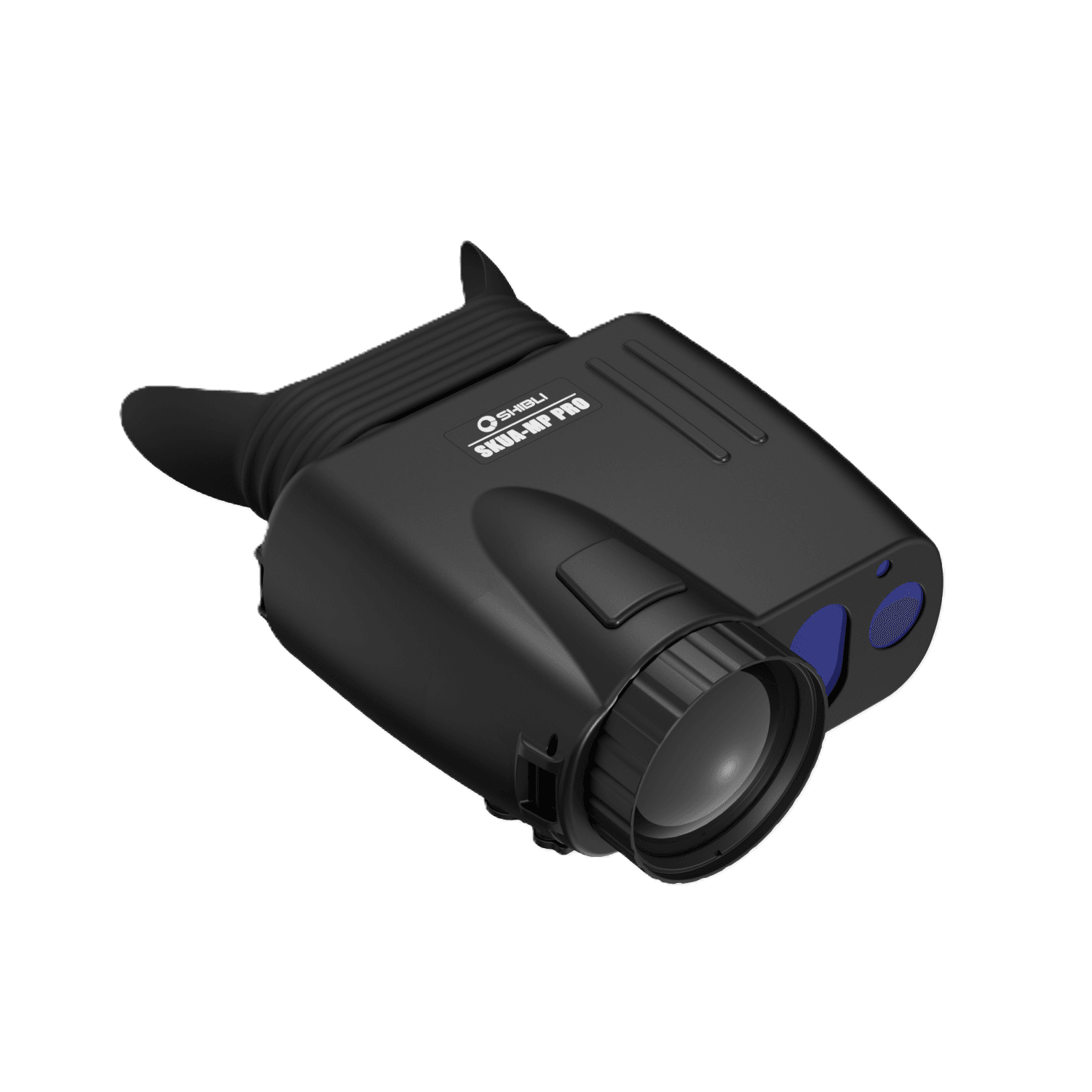

EXPLORE SKUA MP PRO 100
APPLICATIONS
Forward Observation
Surveillance
Situational Awareness
Force Protection
Border Patrol
Port Security
Counter Insurgency Operation
Maritime Surveillance
Facility Protection
Search and Rescue
Day Camera

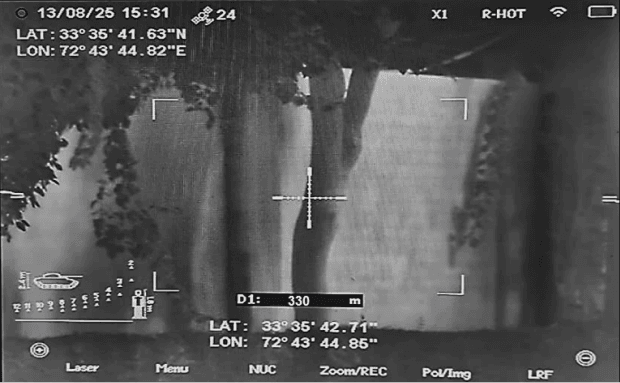

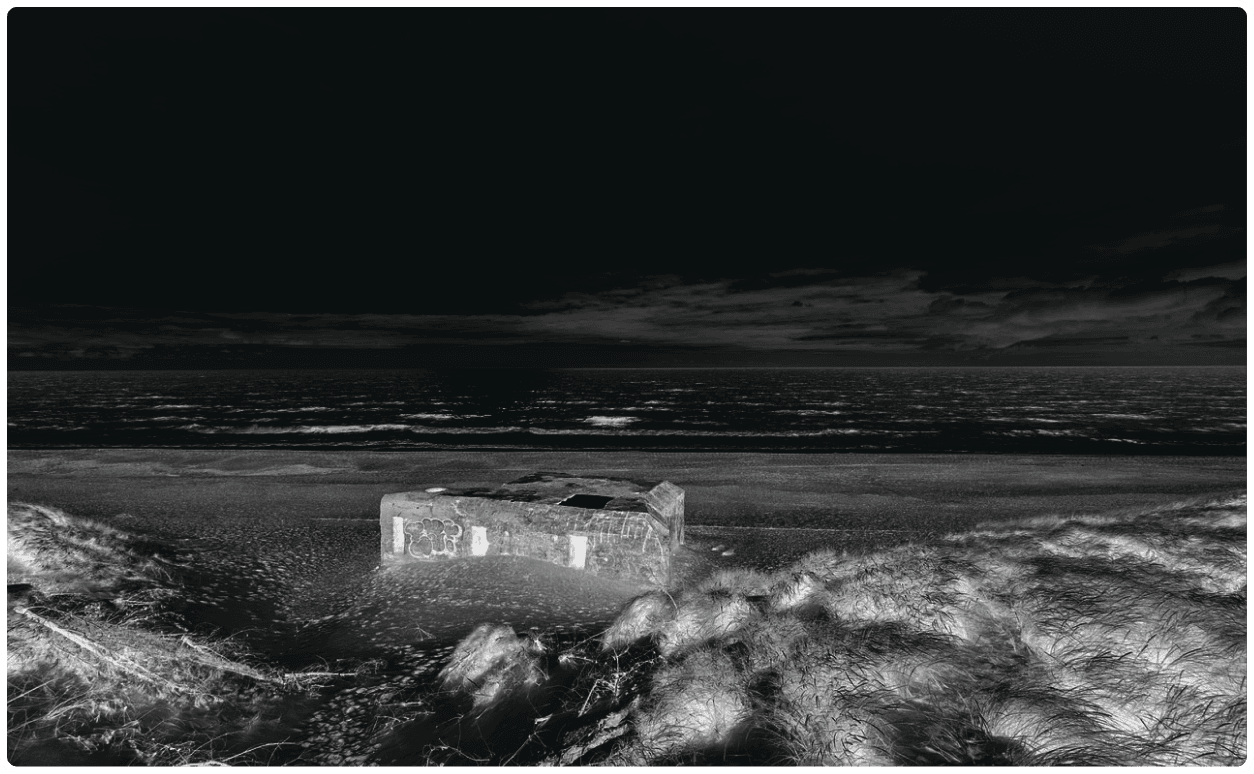

Thermal View
beyond the human eye.
VISION UPGRADED. ACCURACY AMPLIFIED
Specifications
SKUA MP Pro 100
Main Features
Detector
Objective Lens
Optical Magnification
Field of view (HxV)
Detection range (Vehicle)| Products | SKUA-MP Pro 100 | |
|---|---|---|
| Thermal IR Sensor | Material | VOx |
| Resolution | 640 × 480 | |
| Pixel Pitch | 12 μm | |
| Frame Rate | 50 Hz | |
| IR Optics | Focal Length | Fixed 100 mm |
| F-Number | F/1.3 | |
| Focus | Motorized | |
| Optical Magnification | 5.5× | |
| Digital Zoom | 1× / 2× / 4× | |
| HFOV | 4.4° ± 5% | |
| VFOV | 3.3° ± 5% | |
| Visible Sensor | Sensor | CMOS |
| Format | 1/2.8 inch | |
| Resolution | 1280 × 720p | |
| Visible Optics | Focal Length | 6.5–42.5 mm |
| F-Number | F1.2 | |
| Optical Magnification | 1.6× – 8× ± 5% | |
| Digital Zoom | 1× / 2× / 4× | |
| Horizontal FOV | 2.5° – 15.5° ± 5% | |
| Vertical FOV | 1.8° – 11.5° ± 5% | |
| Range Performance | Detection Range (Human) | 2 000 m |
| Recognition Range (Human) | 1 200 m | |
| Identification Range (Human) | 800 m | |
| Detection Range (Vehicle) | 5 000 m | |
| Recognition Range (Vehicle) | 2 500 m | |
| Identification Range (Vehicle) | 1 200 m | |
| Features | Laser Range Finder | Up to 6 km, Eye Safe Class 1M |
| Compass | Available | |
| GNSS | GPS and BeiDou | |
| Fall of Shot | Available | |
| Mass Storage | 32 GB | |
| IR Pointer | 10 mW, range 250 m | |
| Compatibility with North Finder | Available | |
| Wi-Fi Hotspot | Live streaming via SHIBLI App | |
| Interfaces | Video Output | Analog NTSC RS170 |
| Communication | USB, RS232, RS485 | |
| Tripod Mount | UNC 1/4" interface, 200PL quick release | |
| General | Weight (with battery pack) | 1.75 kg |
| Dimensions | 168 × 256 × 96 mm | |
| Battery Type | Rechargeable | |
| Operating Time | > 4 hours | |
| External Power | USB-C | |
| Environmental | Sealing | MIL-STD-810G |
| Operating Temperature | −35 °C to +55 °C | |
| Storage Temperature | −40 °C to +60 °C |
POWER. CONTROL. CLARITY.
- Built-in display for live feed and control interface
- Inbuilt rechargeable batteries with smart charging
- Supports 220V AC / 12V DC / 24V DC inputs
- Waterproof and shock-resistant field case
- Smart PTZ Motor integration for pan/tilt control (place-able inside box)
- Plug-and-play connection with thermal Cameras
- Compact, lightweight design for mobile deployment
Accessories
Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
