MULTI PURPOSE THERMAL BINO

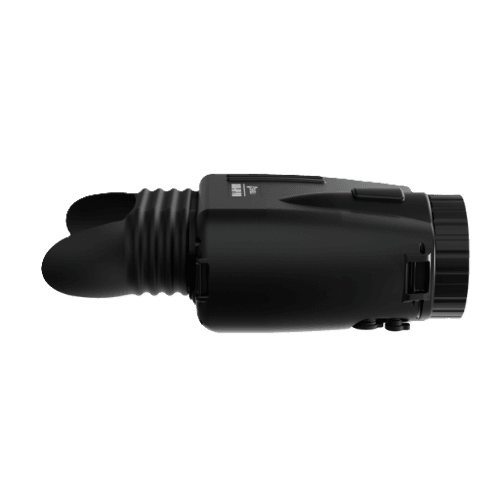

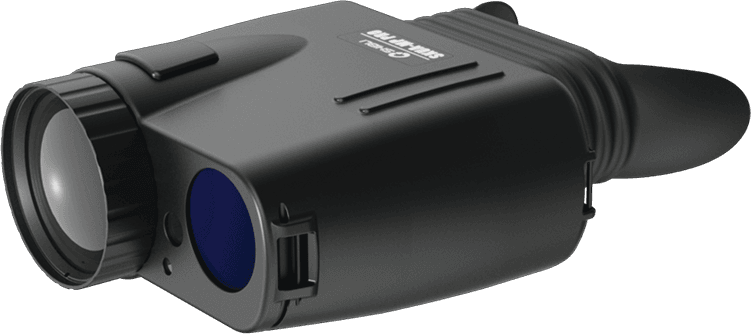

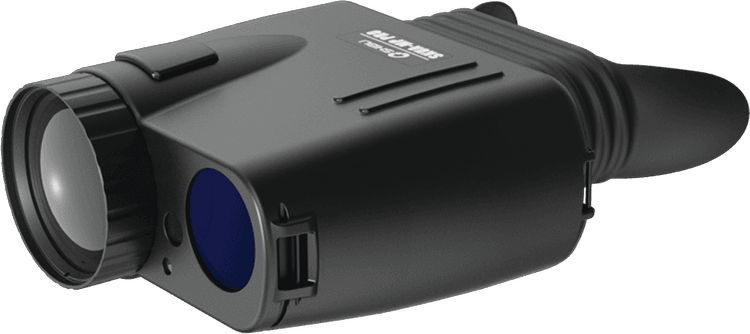

SKUA MP PRO is a LRF equipped (6Km) compact thermal binocular for users seeking a quality thermal image with a lightweight and highly portable thermal binocular which can be a part of their operations related to observation, surveillance, range finding and spotting for target acquisition.
EXPLORE SKUA MP PRO 80
APPLICATIONS
Forward Observation
Surveillance
Situational Awareness
Force Protection
Border Patrol
Port Security
Counter Insurgency Operation
Maritime Surveillance
Facility Protection
Search and Rescue

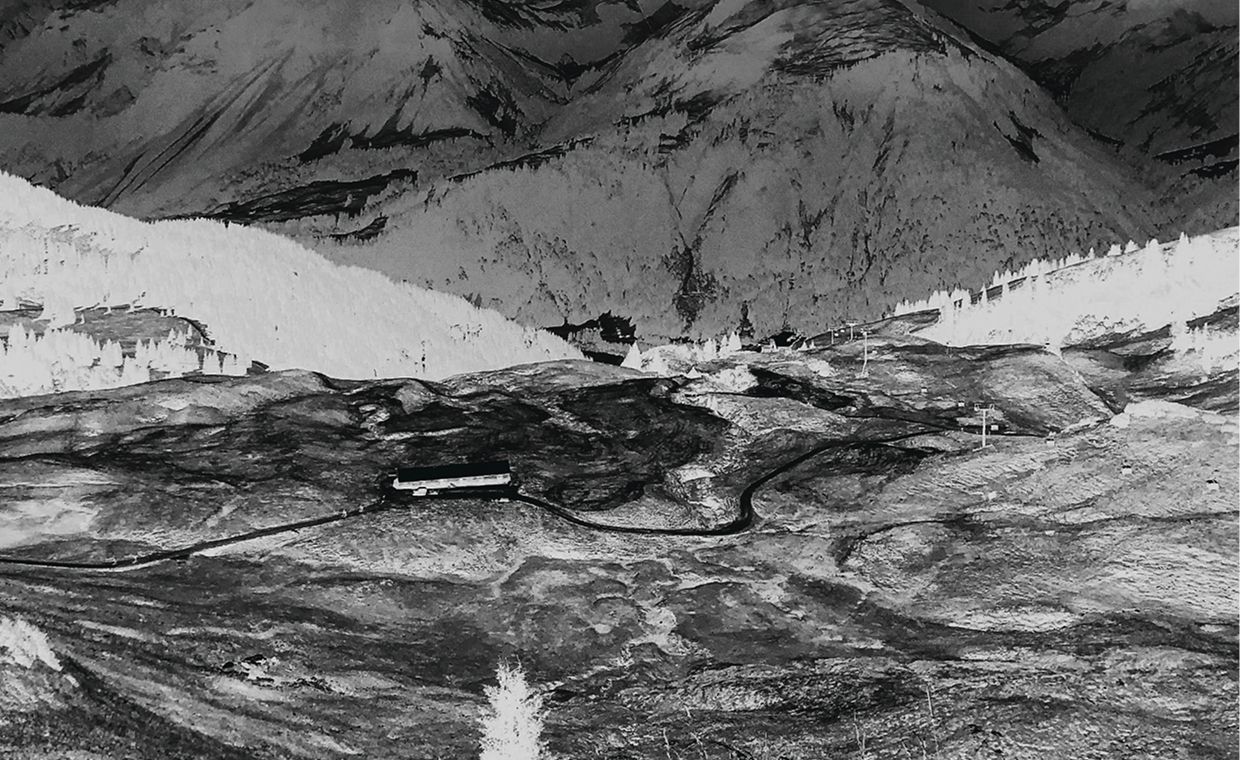

Black Hot

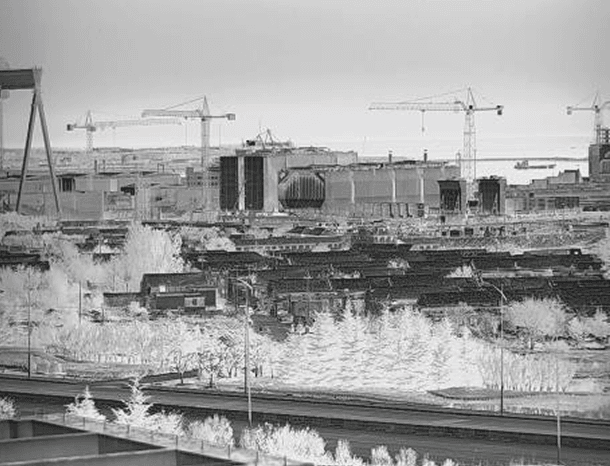

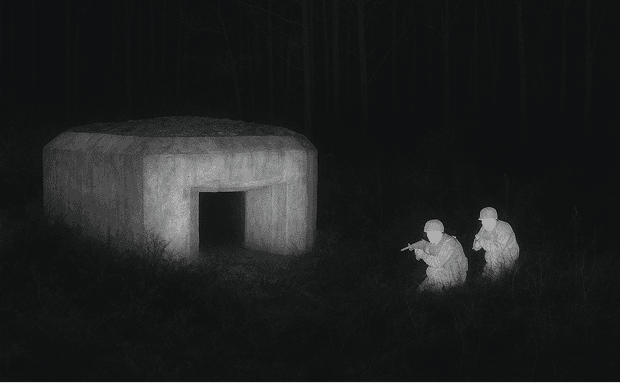

White Hot
beyond the human eye.

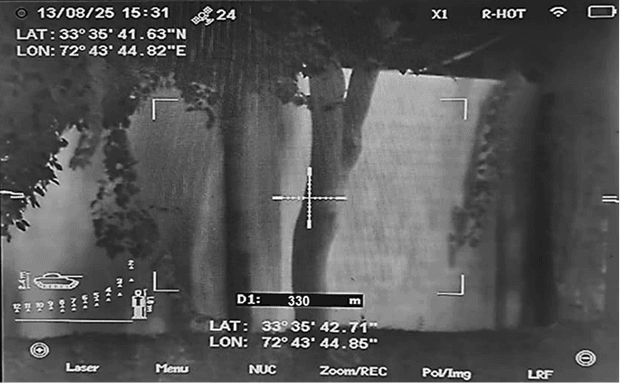

NEXT-GEN PRECISION FOR FORWARD OBSERVATION SUPERIORITY
SPECIFICATIONS

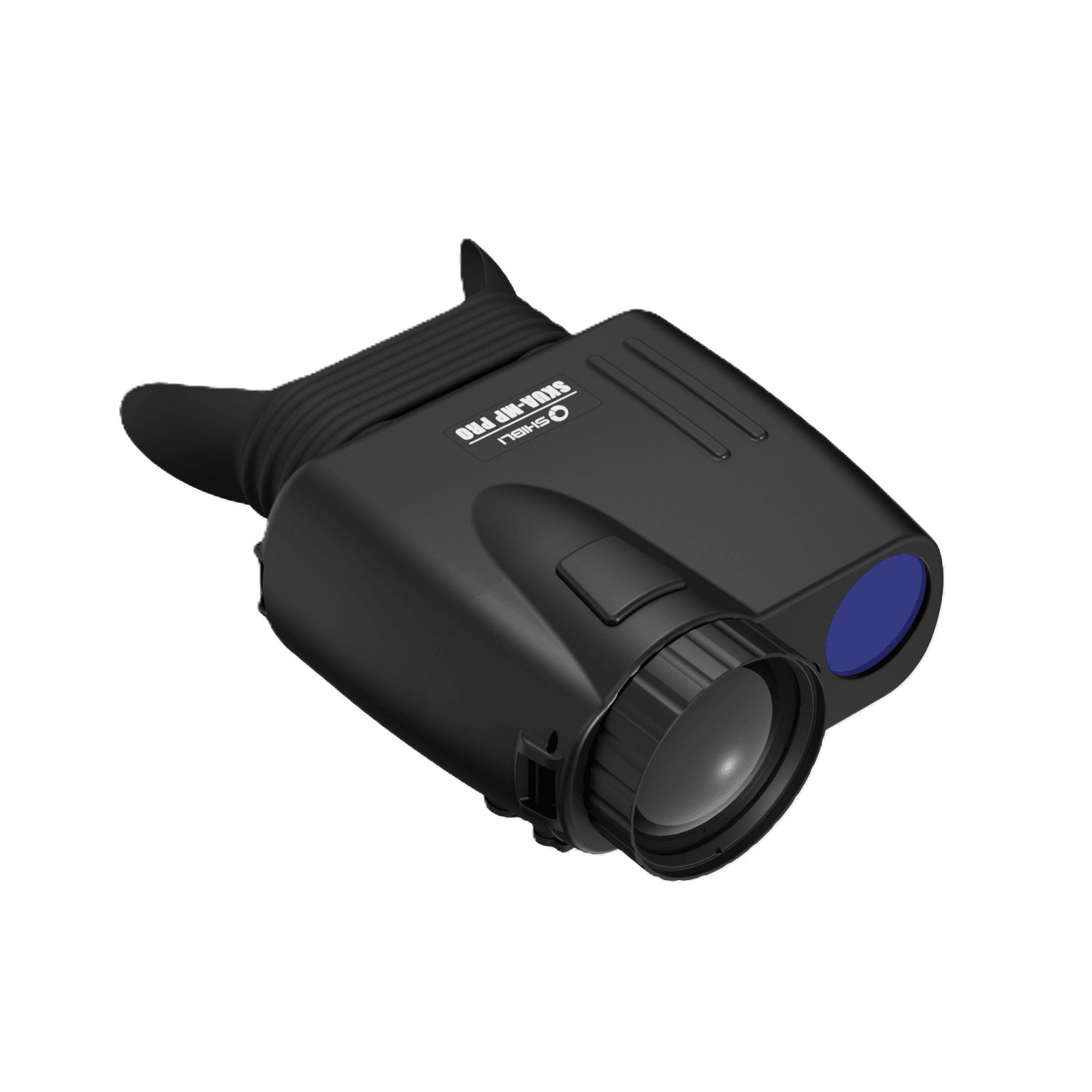

SKUA MP Pro 80
MAIN FEATURES
Detector
Objective Lens
Digital Magnification
Field of view (HxV)
Detection range (Vehicle)| Products | SKUA-MP Pro 80 | |
|---|---|---|
| Sensor | Type | Uncooled |
| Detector Resolution (Pixels) | 640 × 480 | |
| Pixel Pitch | 12 μm | |
| Thermal Sensitivity (NETD) | < 50 mK | |
| Spectral Range | 8–12 μm | |
| Frame Rate | 30 Hz | |
| Optics | Objective Lens | 80 mm |
| Motorized Focus | Yes | |
| Optical Magnification | 4.5× | |
| Digital Magnification | 1× / 2× / 4× | |
| Field of View (H × V) | 5.5° × 4.1° | |
| Diopter Adjustment Range | +2 to −6 | |
| Display | Type | OLED |
| Resolution | 640 × 480 | |
| Performance | Detection Range (Human) | 2 200 m |
| Recognition Range (Human) | 1 300 m | |
| Identification Range (Human) | 700 m | |
| Detection Range (Vehicle) | 5 000 m | |
| Recognition Range (Vehicle) | 2 400 m | |
| Identification Range (Vehicle) | 1 200 m | |
| Recording & Storage | Photo & Video Recorder | Yes |
| Video Recording | Yes (In-built) | |
| Image Storage | In-built | |
| Internal Storage Capacity | 32 GB | |
| Environmental Characteristics | Operating Temperature | -35 °C to +55 °C |
| Storage Temperature | -40 °C to +60 °C | |
| Shock & Vibration | MIL-STD-810G | |
| Water Immersion | 1 m for 30 min (ΔT = 27 °C) |
POWER. CONTROL. CLARITY.
- Built-in display for live feed and control interface
- Inbuilt rechargeable batteries with smart charging
- Supports 220V AC / 12V DC / 24V DC inputs
- Waterproof and shock-resistant field case
- Smart PTZ Motor integration for pan/tilt control (place-able inside box)
- Plug-and-play connection with thermal Cameras
- Compact, lightweight design for mobile deployment
ACCESSORIES
Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
