CONQUER THE DARKNESS

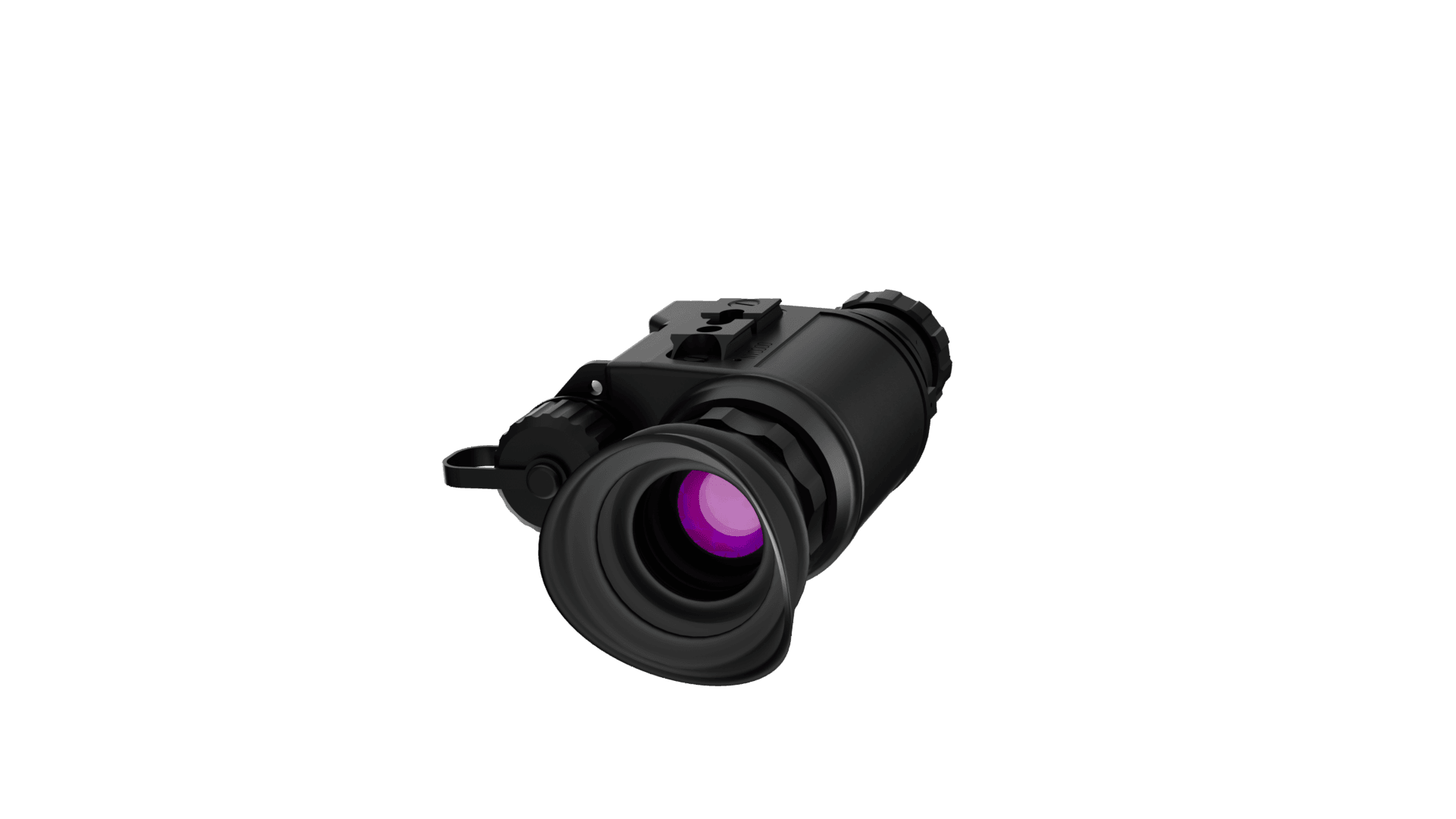

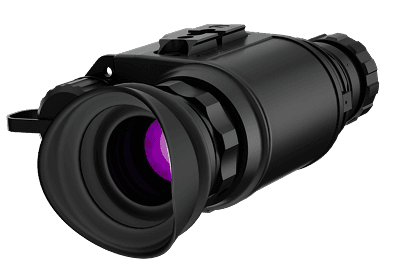

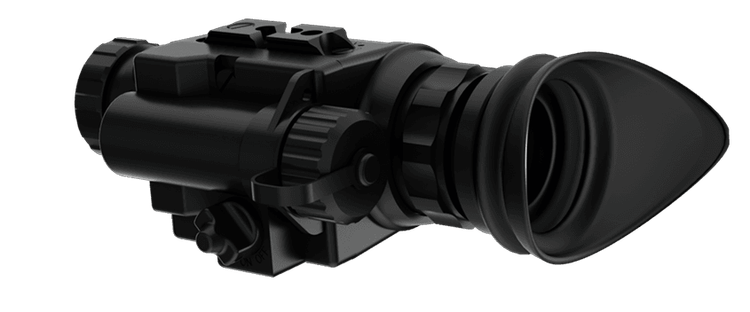

TERRIER-NV is a lightweight portable night vision observation device designed for operation in a complex with IR designators and illuminators, red-dot sights. Monocular complies with all the possible requirements of army and law . enforcement. TERRIER is a version of monocular with IIT Brightness Adjustment for comfortable operation.
EXPLORE TERRIER NV
beyond the human eye.
BUILT-IN INFRA RED (IR) ILLUMINATOR
The built-in IR light source guarantees seamless map reading and precise short-range illumination in total darkness. They provide convenient use both when using monoculars together, and when used separately.
IMPERVIOUS TO WATER

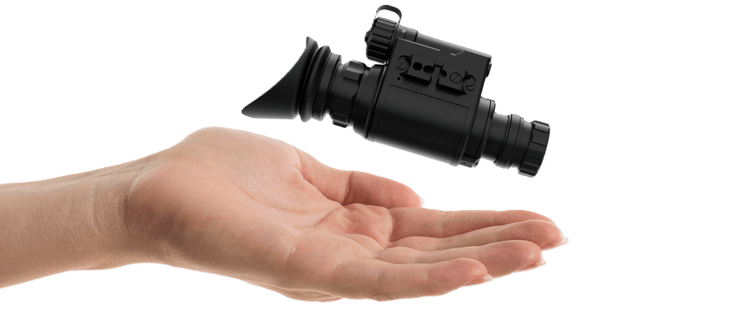

FEATHER WEIGHT
SPECIFICATIONS
TERRIER-NV
MAIN FEATURES
Protection Level
Continuous Operation Time
Screen Color
Power Supply
Weight| Products | TERRIER-NV | |
|---|---|---|
| Night Vision Channel | Image Intensifier | Gen 2+ Auto Gating, P45 |
| F.O.M. (Figure of Merit) | ≥1600 | |
| Objective Lens | Optical Magnification | 1× |
| Focal Distance (Objective Lens) | 26.4 mm | |
| Lens Shift | f / 1.2 | |
| Range of Focusing | 0.25 m → ∞ | |
| Field of View (F.O.V.) | 40° | |
| Dimensions and Weight | Overall Dimensions | 166 × 52 × 76 mm |
| Weight | 330 g | |
| Optical Performance | Signal to Noise Ratio | > 25 dB |
| Eye Relief | 25 mm | |
| Resolution | 64 lp/mm | |
| Halo | 0.8 mm | |
| Black Spot Zone 1 (Center optic) | 0 | |
| Black Spot Zone 2 (Annulus concentric) | 1 | |
| Black Spot Zone 3 (Annulus) | 1 | |
| System Parameters | Image Intensifier Warranty Resource | 10,000 hours |
| Continuous Operation Time | > 40 hours | |
| Power Supply | 1 × AA battery | |
| General Parameters | Operating Temperature Range | -40°C → +50°C |
| Protection Level | IP68 | |
| Diopter Adjustment Range | -6 … +2 dptr. | |
| Integrated IR Illuminator | + | |
| Light Overload Sensor | + | |
| Automatic Light Overload Switch-Off | + | |
| Low-Battery Indication (Battery Discharge) | + | |
| Polarity-Mistake Protection (Any Polarity) | + |
ACCESSORIES
Tripod Picatinny Interface
Std 1913 Picatinny Interface for mounting of Monoculars
Tripod
Universal interface tripod for use in mounted position for long observation
Solar Battery Charger
Foldable solar charger to charge AA Batteries / Power Bank
